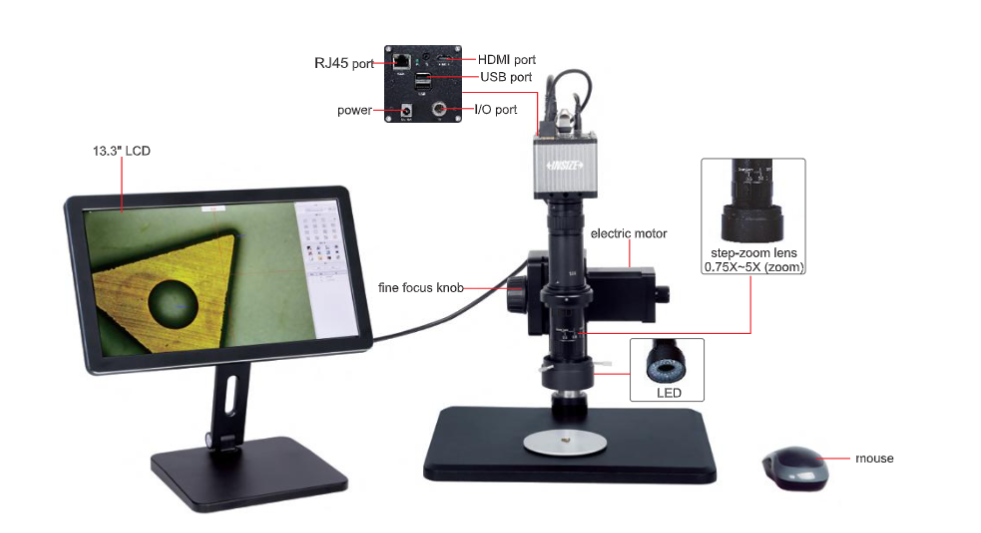

Motorized Focus Staking Microscope (with display) ISM-DL520

Save 25%

Model no: ISM-DL520
Price:
Rs. 250,849 Rs. 333,629

Tax included Shipping calculated at checkout

Description

Features:-

  • 1080P high-definition image

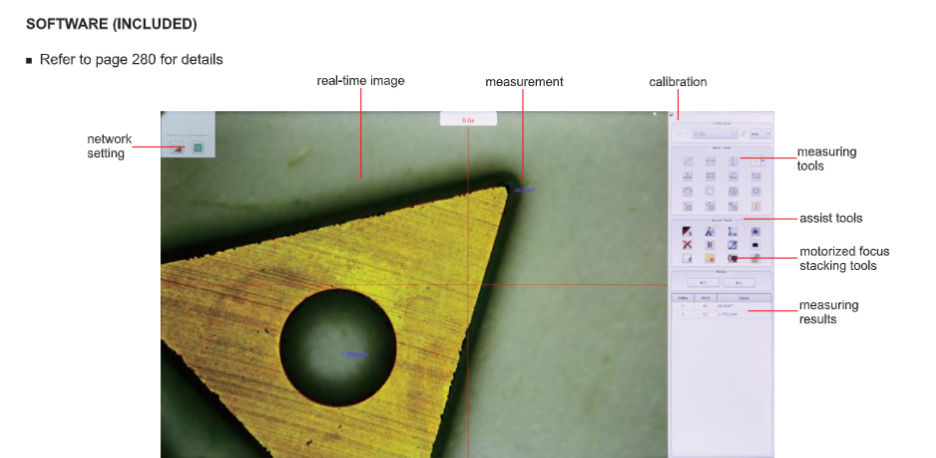

  • Built-in software without computer, operated by mouse
  • Take pictures, save to USB flash disk
  • Measurement results can be sent to Excel
  • Automatic white balance and exposure

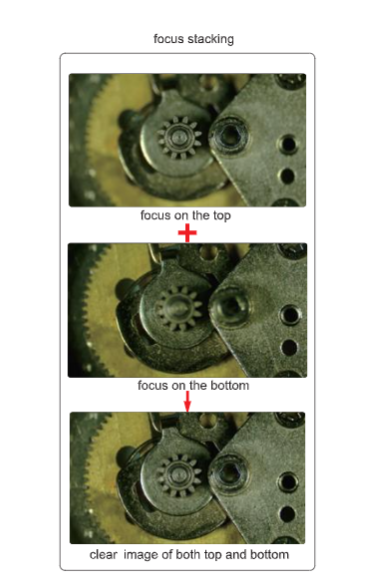

  • Motorized focus stacking
  • Send photos and measurement data via ethemet (TCP/IP)
  • Name photos and measurement data files with serial number of workpieces read by scanner
SPECIFICATION

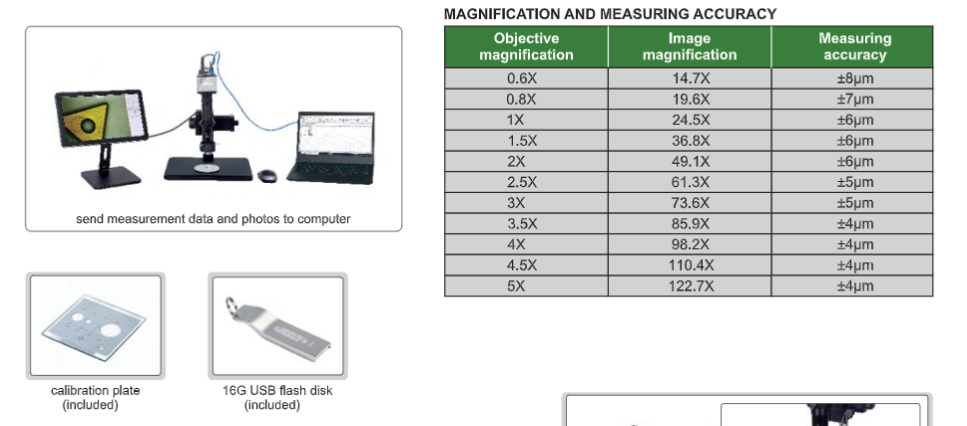

Magnification 14.7X-122.7X
View field 2.3x1.2~19.5x11mm
Focus distance 65mm
Sensor 1/1.2" CMOS
Pixel 2M
Resolution 1920x1080
Frame rate 30fps
Output RJ45
Power supply power adapter
Dimension (LxWxH) 320x260x500mm
