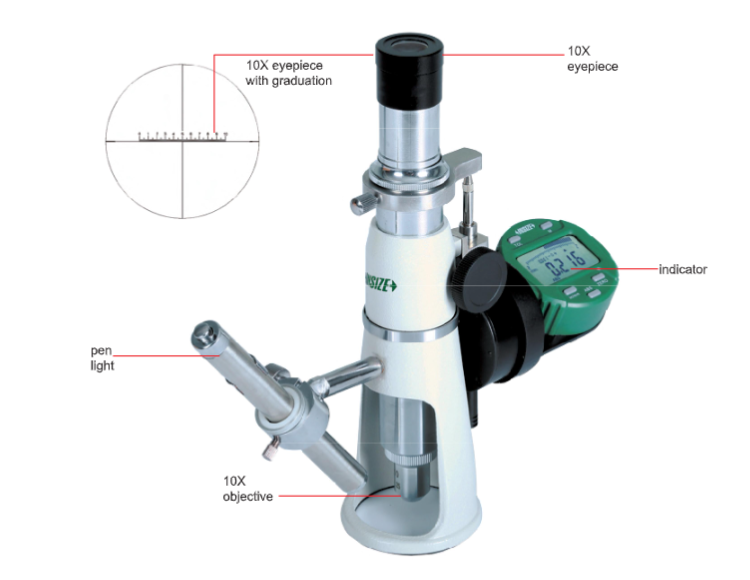

Digital Depth Measuring Microscope - ISM-PM110

Save 25%

Model no.: ISM-PM110
Price:
Rs. 44,425 Rs. 59,085

Tax included Shipping calculated at checkout

Description

Features:-

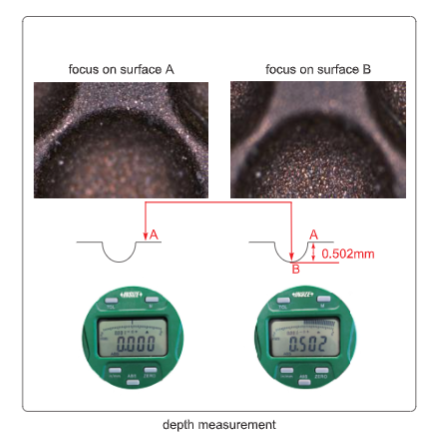

  • Measuring the depth of scratches, chips, burrs, pitting, chattering, scribe lines, engraving, markings, etc.
  • Built-in light source for on-the-spot detection
  • Equipped with a display indicator that clearly shows the data

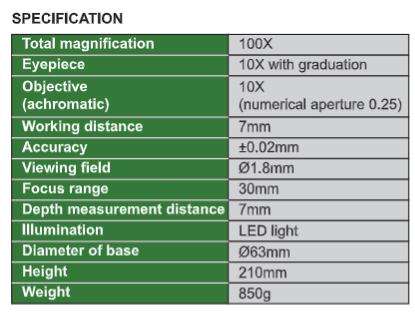

Total magnification 100X
Eyepiece 10X with graduation
Objective (achromatic) 10X (numerical aperture 0.25)
Working distance 7mm
Accuracy ±0.02mm
Viewing field Ø1.8mm
Focus range 30mm
Depth measurement distance 7mm
Illumination LED light
Diameter of base Ø63mm
Height 210mm
Weight 850g
