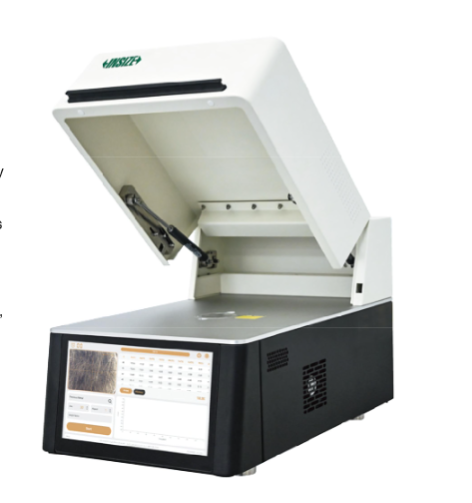

XRF Precious Metal Analyzer XRF-F

Save 25%

Size: XRF-FM480
Price:
Rs. 1,353,485 Rs. 1,800,135

Tax included Shipping calculated at checkout

Description

Features:-

  • Used in precious metal jewelry processing and manufacturing, gold retail stores, pawnshops, recycling department, and testing laboratories
  • Quickly analyze the components of precious metals (Au/Ag/Pt/Pd, etc.). detect the purity grade of gold (0-24K), and achieve a detection accuracy of ppm level
  • Non-destructive testing with no sample preparation required
  • Large-cavity sample chamber suitable for detecting various sample forms
  • Equipped with high-definition cameras, it can monitor the test area in real time, take photos automatically and generate reports
  • Integrated design with 11.6" capacitive touch screen, intuitive and convenient operation
  • The high-voltage safety lock, software-controlled cover, leak-proof switch, and all-metal enclosure ensure operator safety
  • MATERIAL AGAINST ORDER

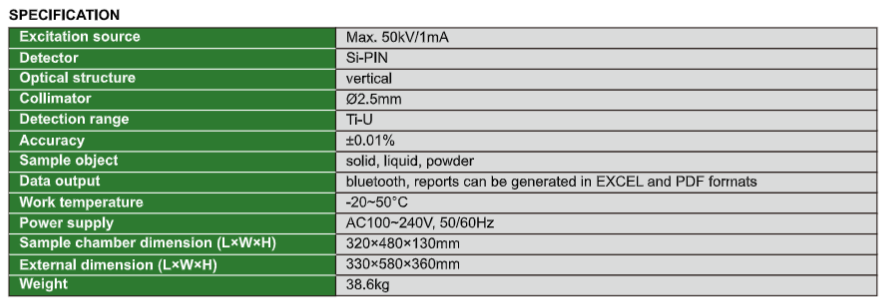

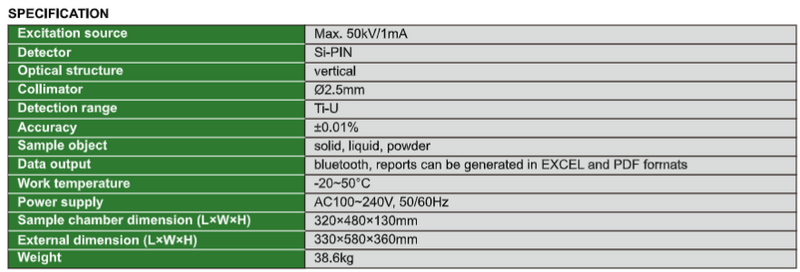

Excitation source Max. 50kV/1mA
Detector Si-PIN
Optical structure vertical
Collimator Ø2.5mm
Detection range Ti-U
Accuracy ±0.01%
Sample object solid, liquid, powder
Data output bluetooth, reports can be generated in EXCEL and PDF forrnats
Work temperature -20~50°C
Power supply AC100~240V, 50/60Hz
Sample chamber dimension (L×W×H) 320×480×130mm
External dimension (L×W×H) 330×580×360mm
Weight 38.6kg
