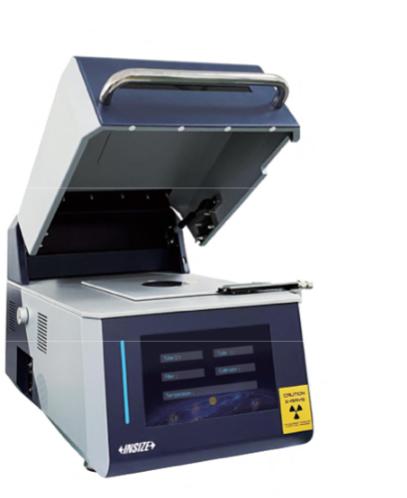

XRF Plating Thickness Instrument - XRF

Save 25%

Size: XRF-PT230
Price:
Rs. 2,208,115 Rs. 2,936,795

Tax included Shipping calculated at checkout

Description

Specification:-

  • According to DIN ISO 3497, DIN 50987, and ASTM B568
  • Application fields: electroplating plating thickness analysis, inspection of electronic components such as connectors, fastener industry, automotive parts, hardware industry (household equipment and accessories, such as Cr/Ni/CuZn(ABS)), new energy industry (photovoltaic welding wire, etc.), thickness analysis of accessories, Ni/Cu/Ni/NdFeB on rubidium iron boron magnets, metal cation detection in electroplating solution, etc.
  • It can detect 90 plating elements
  • Equipped with a micro-focus X-ray generator and an advanced light path conversion focusing system, the minimum measurable area is up to 0.03mm²
  • It has non-destructive manual zoom detection technology, which can perform non-destructive testing on various shaped and irregular grooved parts from 0 to 30mm
  • Equipped with Si-PIN semiconductor detector, high resolution, fast testing speed, stable data, equipped with micro-light focusing technology, ranging spot diffusion less than 10%
  • The core EFP algorithm allows for the simultaneous analysis of 23 plating and 24 elements. It can quickly, accurately, and stably analyze multiple layers and multiple elements, including the same element in different layers
  • User-friendly closed software, automatically identifies faults, provides calibration and operation steps, and avoids misoperations

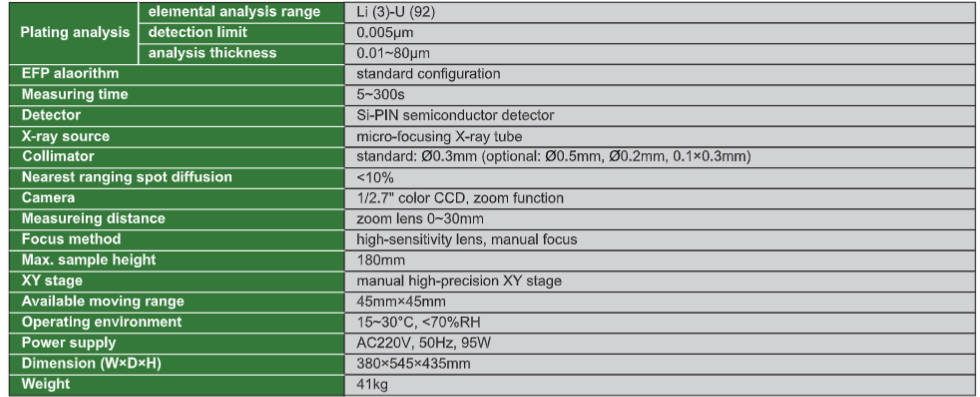

Plating analysis elemental analysis range Li (3)-U (92)
detection limit 0.005um
analysis thickness 0.01~80um
EFP alaorithm standard configuration
Measuring time 5~300s
Detector Si-PIN semiconductor detector
X-ray source micro-focusing X-ray tube
Collimator standard: 00.3mm (optional: 00.5mm, 00.2mm, 0.1x0.3mm)
Nearest ranging spot diffusion <10%
Camera 1/2.7" color CCD, zoom function
Measureing distance zoom lens 0~30mm
Focus method high-sensitivity lens, manual focus
Max. sample height 180mm
XY stage manual high-precision XY stage
Available moving range 45mmx45mm
Operating environment 15~30°C, <70%RH
Power supply AC220V, 50Hz, 95W
Dimension (WxDxH) 380x545x435mm
Weight 41kg
