WS-BL Series : Hydraulic Work Support - Low Oil Working pressure - 25-70 Kg/cm2

Save 27%

Variant: WS-T30BL
Price:
Rs. 28,960 Rs. 39,675

Tax included Shipping calculated at checkout

Description

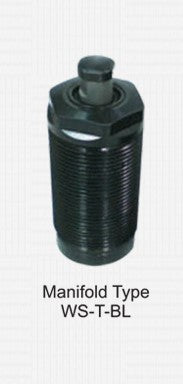

Smaller three Sizes are manifold mounting type threaded body and larger sizes are pipping type upper flange mounting. All below models are hydraulic advanced.

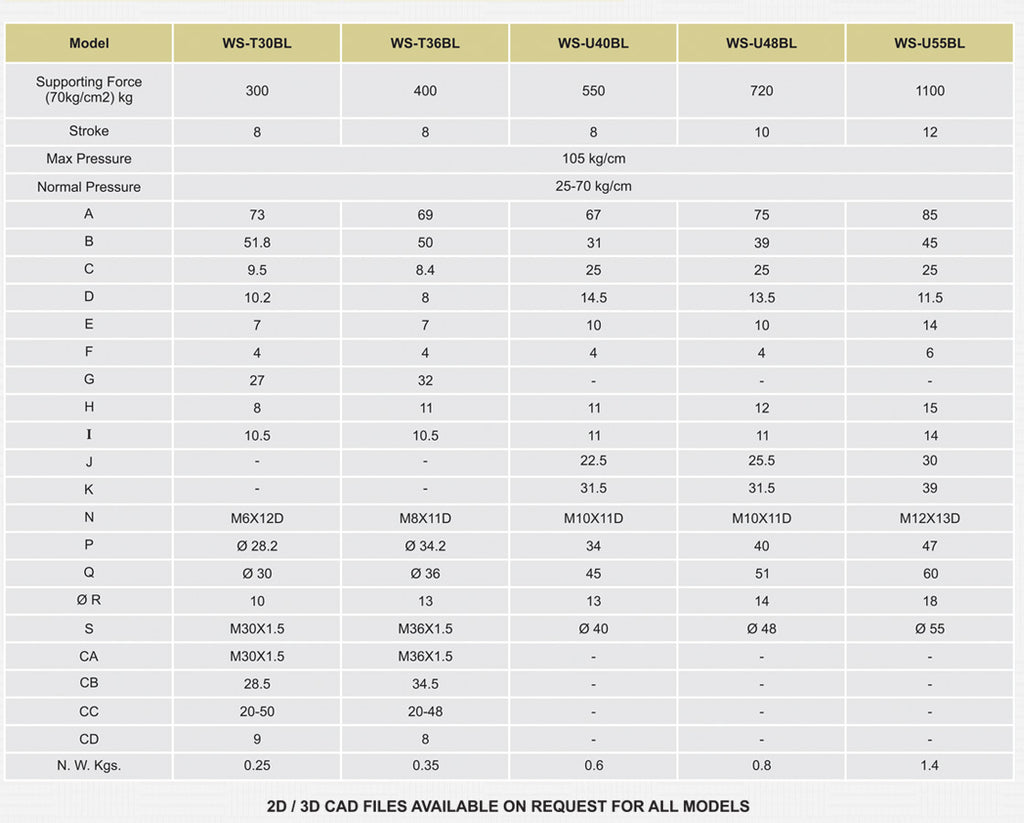

Model WS-T30BL WS-T30BL WS-T30BL WS-T30BL WS-T30BL
Suppoeting Force (70kg/cm2) kg
300 400 550 720 1100
Stroke 8 8 8 10 12
Max. Pressure 105 kg/cm
Normal Pressure 25-70/cm

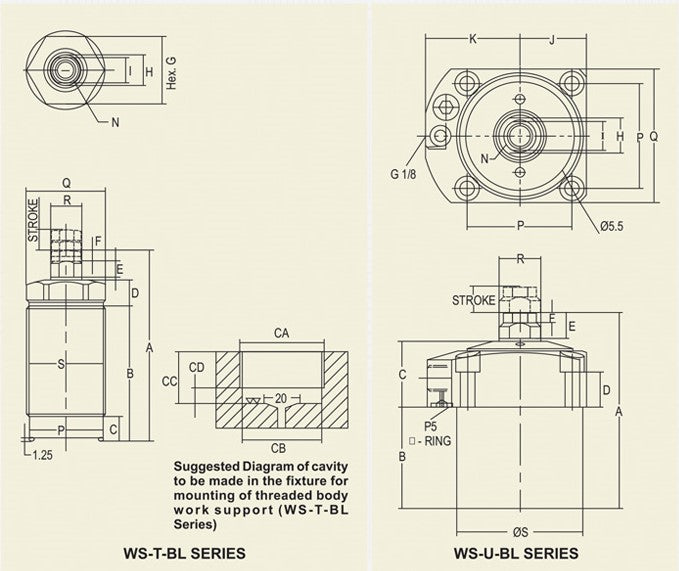

A 73 69 67 75 85
B 51.8 50 31 39 45
C 9.5 8.4 25 25 25
D 10.2 8 14.5 13.5 11.5
E 7 7 10 10 14
F 4 4 4 4 6
G 27 32 - - -
H 8 11 11 12 15
I 10.5 10.5 11 11 14
J - - 22.5 25.5 30
K - - 31.5 31.5 39
N M6X120 M8X11D M10X11D M10X11D M12X13D
P Ø 26.2 Ø 34.2 34 40 47
Q Ø 30 Ø 36 45 51 60
ØR 10 13 13 14 18
S M30X1.5 M36X1.5 Ø 40 Ø 48 Ø 55
CA M30X1.5 M36X1.5 - - -
CB 28.5 34.5 - - -
CC 20-50 20-48 - - -
CD 9 8 - - -
N.W. Kgs 0.25 0.35 0.6 0.8 1.4
