Wireless Electronic Levels - 4952

Save 25%

Model no: 4952-150
Price:
Rs. 273,750 Rs. 364,089

Tax included Shipping calculated at checkout

Description

Specifications:-

  • Measures flatness, parallelism and straightness
  • Built-in wireless transmission module, 433MHz signal, wireless connection to computer, transmission distance 50m

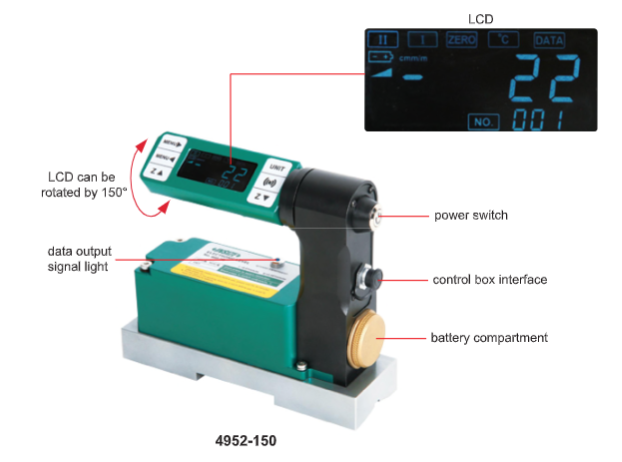

  • The LCD can be rotated for easy observation in different directions
  • Designed with handle for easy access
  • V-groove on bottom for shafts

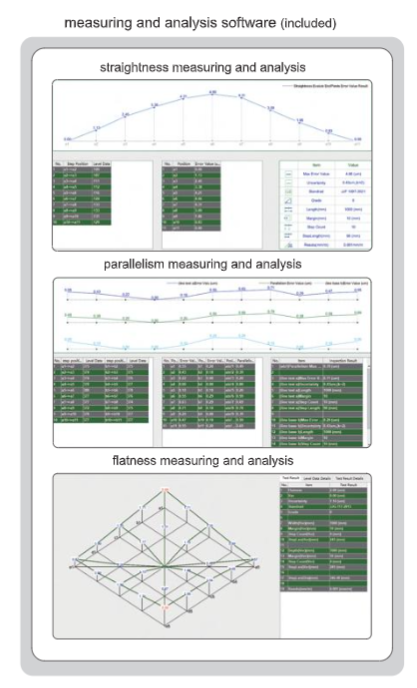

  • Supplied with measuring and analysis software

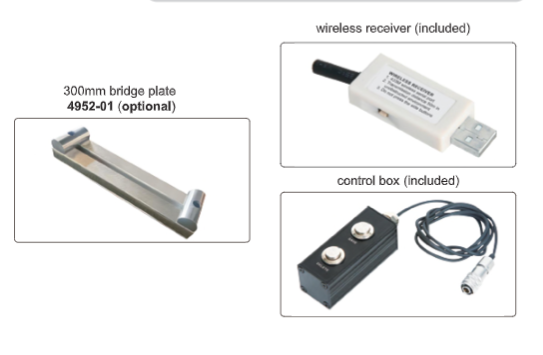

  • Optional accessory: bridge plate (code 4952-01)

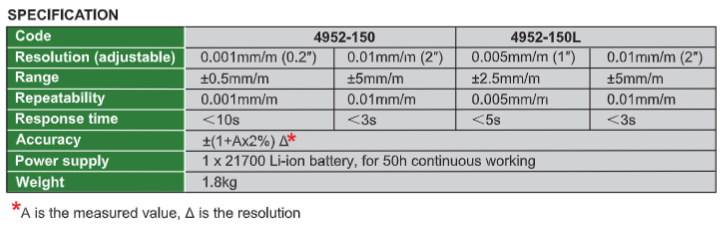

Code 4952-150 4952-150L
Resolution (adjustable) 0.001mm/m (0.2") 0.01mm/m (2") 0.005mm/m (1") 0.01mm/m (2")
Range ±0.5mm/m ±5mm/m ±2.5mm/m ±5mm/m
Repeatability 0.001mm/m 0.01mm/m 0.005mm/m 0.01mm/m
Response time <10s <3s <5s <3s
Accuracy ±(1+Ax2%) △*
Power supply 1 x 21700 Li-ion battery, for 50h continuous working
Weight 1.8kg
*A is the measured value, △ is the resolution
