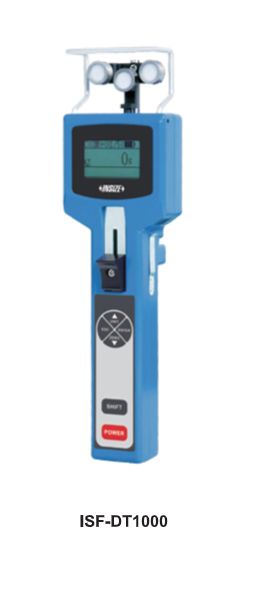

Wire Tensio Meter - ISF-DT

Save 25%

Size: ISF-DT200
Price:
Rs. 136,475 Rs. 181,509

Tax included Shipping calculated at checkout

Description

Specifications:-

  • Suitable for testing the tension of stranding machines, winding machines, wire cutting machines, carbon fibre winding equipments, fibre optic winding equipments, fibre optic cable production equipments, glass fibre winding equipments, steel cord production equipments, steel wire rope production equipments and so on
  • Automatic zeroing, manual zeroing also possible
  • Memory function for recording the current real-time value (up to 200 data), for recording phase data (max., min., average)
  • 10 calibration channels, 6 groups of calibration points to choose from
  • Fine-tunable compensation, compensation value range ±10%FS, 1% for one component
  • Six units g. cN, N. Ib, daN, kg are automatically converted
  • 3 min no operation auto shutdown

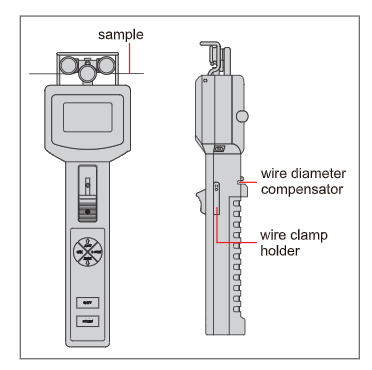

  • With wire diameter compensation, high measurement accuracy
  • https://youtu.be/Rfd-z3PdzEA

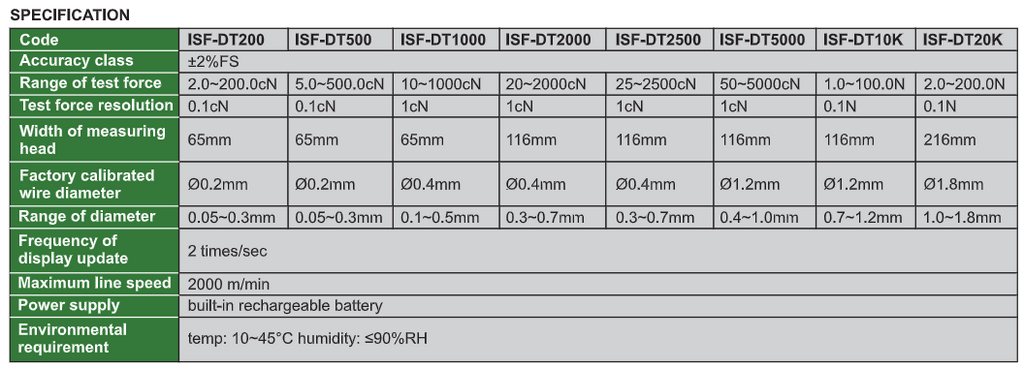

Code ISF-DT200 ISF-DT500 ISF-DT1000 ISF-DT2000 ISF-DT2500 ISF-DT5000 ISF-DT10K ISF-DT20K
Accuracy class ±2%FS
Range of test force 2.0~200.0cN 5.0~500.0cN 10~1000cN 20~2000cN 25~2500cN 50~5000cN 1.0~100.0N 2.0~200.0N
Test force resolution 0.1cN 0.1cN 1cN 1cN 1cN 1cN 0.1N 0.1N
Width of measuring head 65mm 65mm 65mm 116mm 116mm 116mm 116mm 216mm
Factory calibrated wire diameter Ø0.2mm Ø0.2mm Ø0.4mm Ø0.4mm Ø0.4mm Ø1.2mm Ø1.2mm Ø1.8mm
Range of diameter 0.05~0.3mm 0.05~0.3mm 0.1~0.5mm 0.3~0.7mm 0.3~0.7mm 0.4~1.0mm 0.7~1.2mm 1.0~1.8mm
Frequency of display update 2 times/sec
Maximum line speed 2000 m/min
Power supply built-in rechargeable battery
Environmental requirement temp: 10~45°C humidity: ≤90%RH
