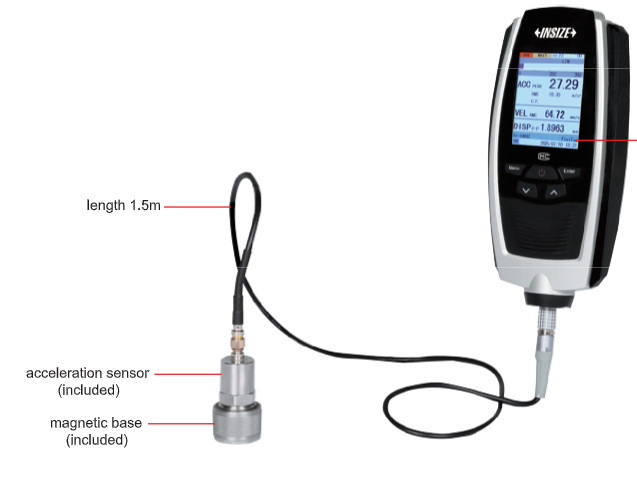

Vibration Meter (standard type) - 0024

Save 25%

Model no.: 0024-VM40
Price:
Rs. 95,495 Rs. 127,009

Tax included Shipping calculated at checkout

Description

Specifications :-

  • Suitable for factory inspection, status monitoring and fault diagnosis of mechanical equipments such as motors, pumps, fans, household appliances, compressors, generators, gearboxes, etc.
  • Can measure the peak value and RMS value of acceleration, RMS value of velocity and peak-to-peak value of displacement

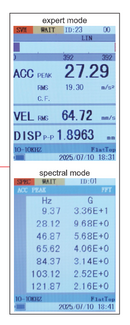

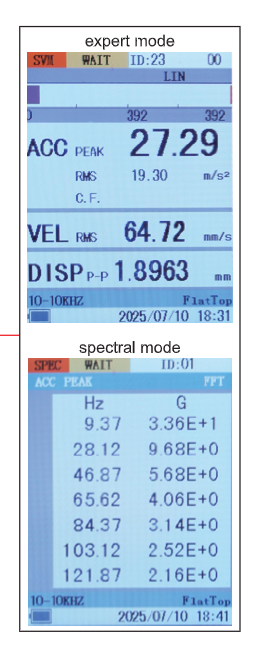

  • Measure mode: expert mode and spectral mode
  • 2.4" TFT color screen
  • Automatic power off
  • Battery level display
  • Mobile App is included (only for Android system): upload data stored in the device to the mobile phone
  • Data Output

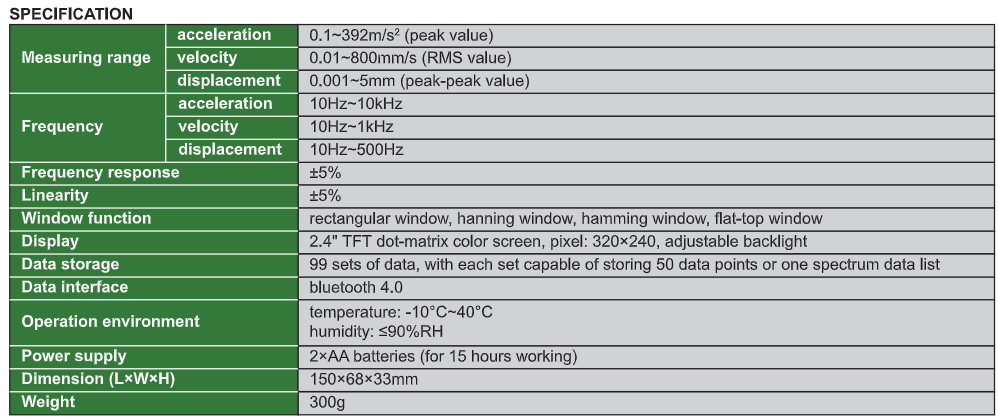

Measuring range acceleration 0.1~392m/s² (peak value)
velocity 0.01~800mm/s (RMS value)
displacement 0.001~5mm (peak-peak value)
Frequency acceleration 10Hz~10kHz
velocity 10Hz~1kHz
displacement 10Hz~500Hz
Frequency response ±5%
Linearity ±5%
Window function rectangular window, hanning window, hamming window, flat-top window
Display 2.4" TFT dot-matrix color screen, pixel: 320x240, adjustable backlight
Data storage 99 sets of data, with each set capable of storing 50 data points or one spectrum data list
Data interface bluetooth 4.0
Operation environment temperature: -10°C~40°C humidity: ≤90%RH
Power supply 2xAA batteries (for 15 hours working)
Dimension (L×W×H) 150×68×33mm
Weight 300g
