Vertical Bench Center - 4743

Save 25%

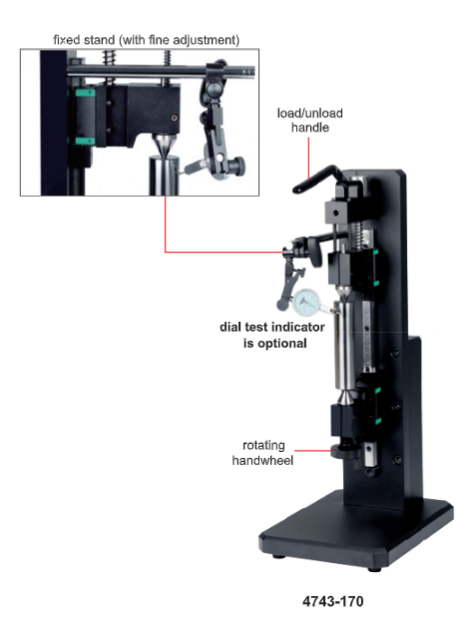

Model no.: 4743-170 (Fixed stand)
Price:
Rs. 139,185 Rs. 185,115

Tax included Shipping calculated at checkout

Description

Specification ;-

  • Quick positioning, suitable for mass measurement
  • Suitable for cylinders with outside diameter Ø3-120mm or inside diameter Ø1-25mm
  • Fixed/universal stand can be optionally installed on request, up to 2
  • Optional accessory: dial test indicators (code 2880-02. 2880-02R, 2897-02, 2380-02C 2381-02C, 2381-021C).
  • fixed stand, universal stand

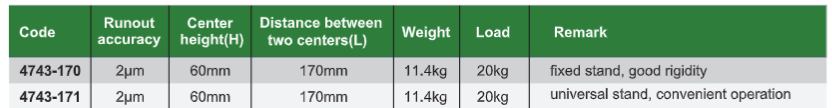

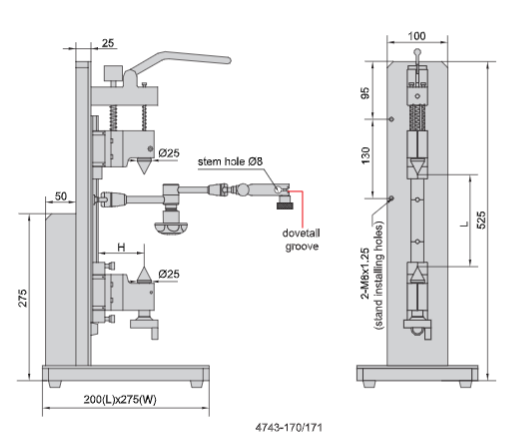

Code Runout accuracy Center height(H) Distance between two centers(L) Weight Load Remark
4743-170 2μm 60mm 170mm 11.4kg 20kg fixed stand, good rigidity

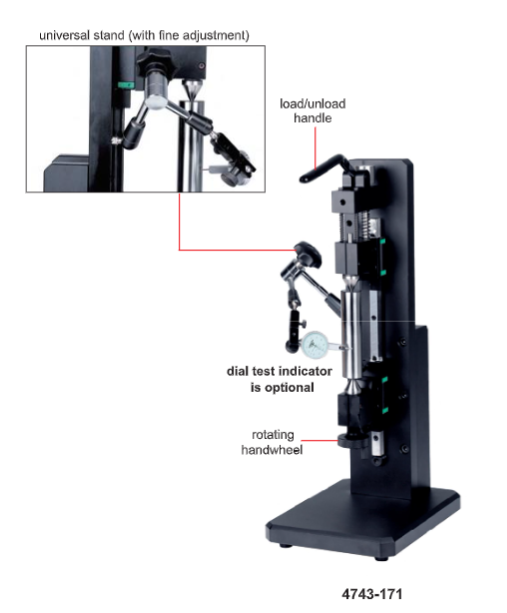

4743-171 2µm 60mm 170mm 11.4kg 20kg universal stand, convenient operation
