Vernier Hook Depth Gauges - 1245

Save 25%

Model no.: 1245-150 (0-150mm)
Price:
Rs. 4,459 Rs. 5,949

Tax included Shipping calculated at checkout

Description

Description

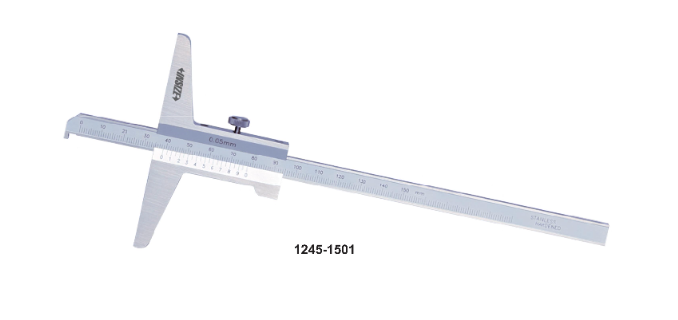

The Insize 1245 Vernier Hook Depth Gauges are made of stainless steel with a satin chrome plated reading surface, meeting DIN862, for accurate depth measurement from a hooked reference edge.

Features

  • Stainless steel construction, satin chrome plated reading surface
  • Hooked base for measuring from an edge or step
  • Meets DIN862

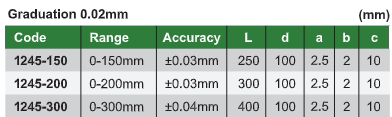

Specification

Code Range Accuracy L d a b c
1245-150 0-150mm ±0.03mm 250 100 2.5 2 10
1245-200 0-200mm ±0.03mm 300 100 2.5 2 10
1245-300 0-300mm ±0.04mm 400 100 2.5 2 10

Graduation: 0.02mm
