Universal Strap Clamp : USC-24B

Save 27%

Size: USC-24(B) (1 pc)
Price:
Rs. 2,375 Rs. 3,255

Tax included Shipping calculated at checkout

Description

  • Tool fast universal strap clamp is most suitable for die clamping on power presses.
  • A very useful clamp for job clamping on 'T' slot table of drilling, milling shaping,boring and other machine tools.
  • No supports are required at the rear of the clamp since the body of the clamp is self positioning as the rear rests on the table & front holds the job.
  • Clamp is supplied complete with hardened T-Bolt & special nut.
  • The body positions itself with the help of swivel hinge pin according to the thickness of the work piece.

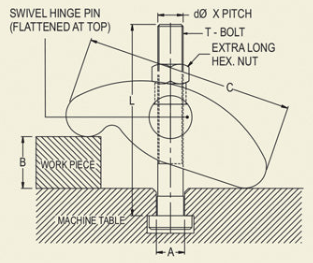

SPECIFICATIONS

Model

USC-24A

USC-24B

T-Slot Size A

24

28

dø × Pitch × L

M24 × 3.0 × 210

M24 × 3.0 × 210

Clamping Range B

0-120

0-120

Length of Clamp C

190

190

Breadth of Clamp

65

65

Tightening Torque Nm Max

730

730

Clamping Force Max

6000 Kgs

6000 Kgs

N.W (Kgs.)

4.39

4.68
