Universal Strap Clamp : USC-20B

Save 27%

Size: USC-20(B) (1pc)
Price:
Rs. 1,699 Rs. 2,329

Tax included Shipping calculated at checkout

Description

  • Tool fast universal strap clamp is most suitable for die clamping on power presses.
  • A very useful clamp for job clamping on 'T' slot table of drilling, milling shaping,boring and other machine tools.
  • No supports are required at the rear of the clamp since the body of the clamp is self positioning as the rear rests on the table & front holds the job.
  • Clamp is supplied complete with hardened T-Bolt & special nut.
  • The body positions itself with the help of swivel hinge pin according to the thickness of the work piece.

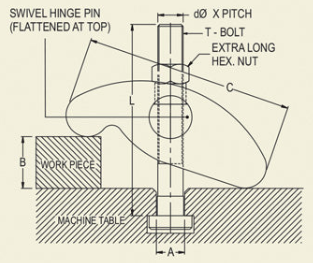

SPECIFICATIONS

Model

USC-20A

USC-20B

T-Slot Size A

20

22

dø × Pitch × L

M20 × 2.5 ×150

M20 × 2.5 ×150

Clamping Range B

0-100

0-100

Length of Clamp C

160

160

Breadth of Clamp

55

55

Tightening Torque Nm Max

410

410

Clamping Force Max

5000 Kgs

5000 Kgs

N.W (Kgs.)

2.45

2.48
