Universal Strap Clamp : USC-16A

Save 27%

Size: USC-16(A) (1pc)
Price:
Rs. 1,155 Rs. 1,585

Tax included Shipping calculated at checkout

Description

  • Tool fast universal strap clamp is most suitable for die clamping on power presses.
  • A very useful clamp for job clamping on 'T' slot table of drilling, milling shaping,boring and other machine tools.
  • No supports are required at the rear of the clamp since the body of the clamp is self positioning as the rear rests on the table & front holds the job.
  • Clamp is supplied complete with hardened T-Bolt & special nut.
  • The body positions itself with the help of swivel hinge pin according to the thickness of the work piece.

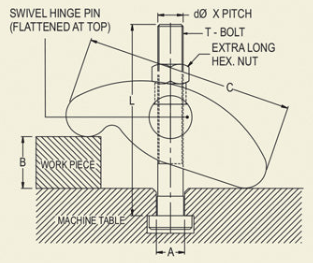

SPECIFICATIONS

Model

USC-16A

USC-16B

T-Slot Size A

16

18

dø × Pitch × L

M16 × 2.0 ×130

M16 × 2.0 ×130

Clamping Range B

0-80

0-80

Length of Clamp C

130

130

Breadth of Clamp

50

50

Tightening Torque Nm Max

210

210

Clamping Force Max

3200 Kgs

3200 Kgs

N.W (Kgs.)

1.73

1.74
