Universal Strap Clamp : USC-12B

Save 27%

Size: USC-12(B) (1pc)
Price:
Rs. 895 Rs. 1,229

Tax included Shipping calculated at checkout

Description

  • Tool fast universal strap clamp is most suitable for die clamping on power presses.
  • A very useful clamp for job clamping on 'T' slot table of drilling, milling shaping,boring and other machine tools.
  • No supports are required at the rear of the clamp since the body of the clamp is self positioning as the rear rests on the table & front holds the job.
  • Clamp is supplied complete with hardened T-Bolt & special nut.
  • The body positions itself with the help of swivel hinge pin according to the thickness of the work piece

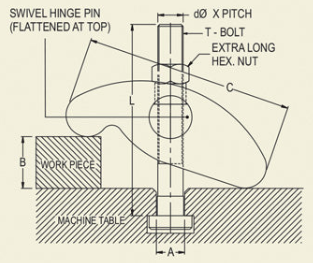

SPECIFICATIONS

Model

USC-12A

USC-12B

T-Slot Size A

12

14

dø × Pitch × L

M12 × 1.75 ×100

M12 × 1.75 ×100

Clamping Range B

0-60

0-60

Length of Clamp C

105

105

Breadth of Clamp

42

42

Tightening Torque Nm Max

90

90

Clamping Force Max

2000 Kgs

2000 Kgs

N.W (Kgs.)

0.84

0.86
