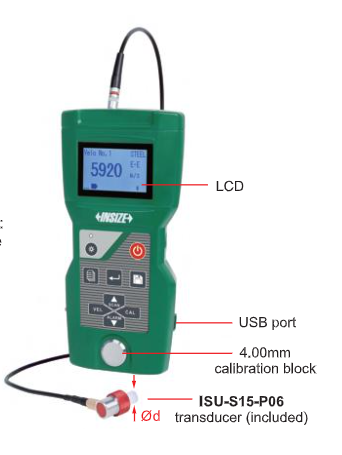

Ultrasonic Thickness Gauge - ISU-800D

Save 25%

Size: ISU-800D
Price:
Rs. 175,529 Rs. 233,455

Tax included Shipping calculated at checkout

Description

Features:-

  • Real-time temperature compensation eliminates the error caused by temperature variation

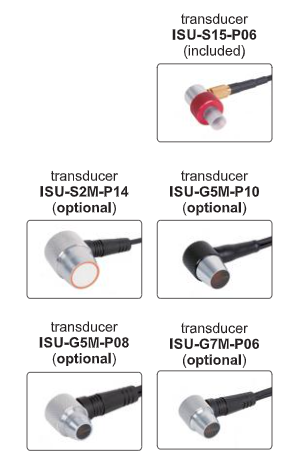

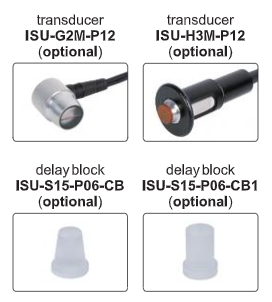

  • Support both single element transducers and dual element transducers
  • Measure the thickness of substrate through coating
  • Measuring mode: standard mode (dual element transducer: P-E mode, single element transducer: I-E mode), penetrate coating mode (dual element transducer: I-E mode, single element transducer: E-E mode or auto mode)
  • Measure method: single point, scanning, deviation
  • Set upper and lower limits for alarm when out-of-tolerance
  • Single point and 2 points calibration
  • Keyboard lock function avoids parameter setting change caused by unintended press during measurement
  • Memory 1000 measurement values
  • Data can be transmitted to PC by Bluetooth connection or Mini-USB cable

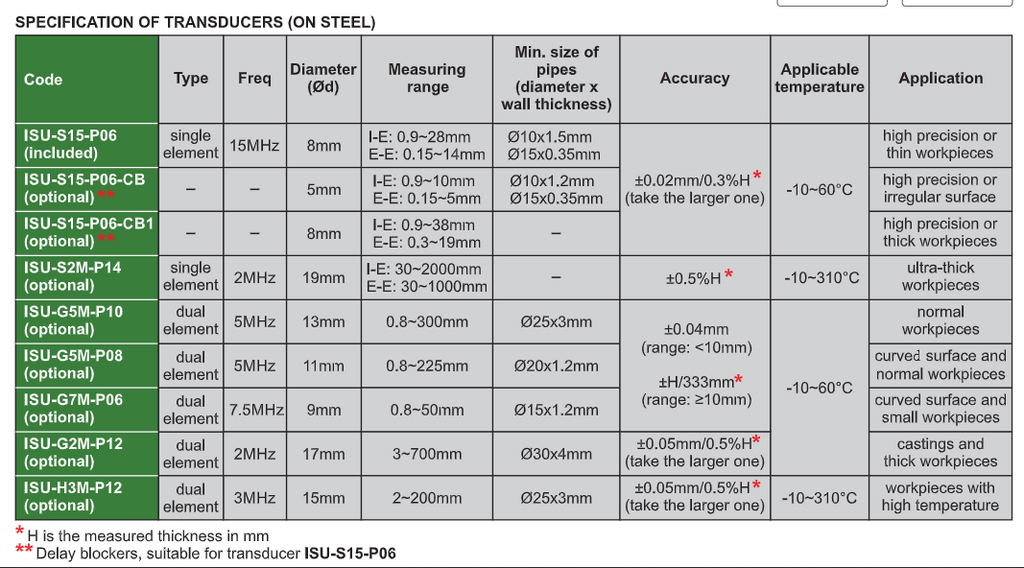

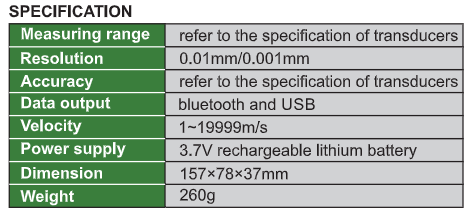

Measuring range refer to the specification of transducers
Resolution 0.01mm/0.001mm
Accuracy refer to the specification of transducers
Data output bluetooth and USB
Velocity 1~19999m/s
Power supply 3.7V rechargeable lithium battery
Dimension 157×78×37mm
Weight 260g
