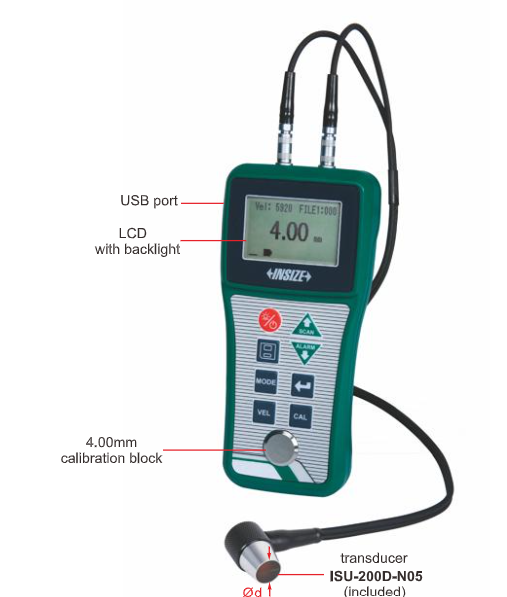

Ultrasonic Thickness Gauge - ISU-200D

Save 25%

Size: ISU-200D
Price:
Rs. 33,249 Rs. 44,220

Tax included Shipping calculated at checkout

Description

Features:-

  • With zero calibration and two-point calibration function, can automatically correct the system error
  • Measure method: single point, scanning, deviation
  • Measures steel, cast iron, aluminum, copper, plastics, ceramics, glass, fiberglass, etc.
  • Set upper and lower limits for alarm when out-of-tolerance
  • Memory 500 measurement values

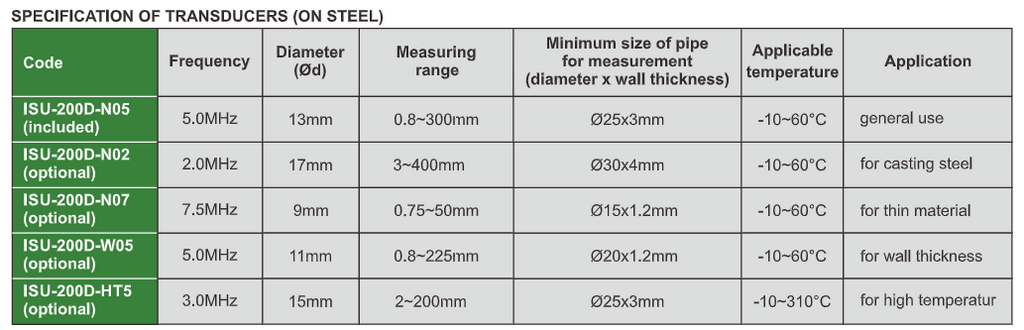

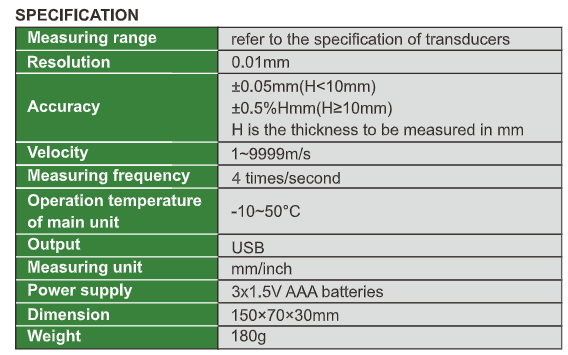

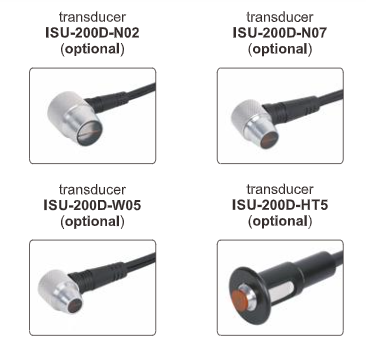

Measuring range refer to the specification of transducers
Resolution 0.01mm
Accuracy ±0.05mm(H<10mm)
±0.5%Hmm(H≥10mm)
H is the thickness to be measured in mm
Velocity 1~9999m/s
Measuring frequency 4 times/second
Operation temperature -10~50°C
of main unit
Output USB
Measuring unit mm/inch
Power supply 3x1.5V AAA batteries
Dimension 150×70×30mm
Weight 180g
