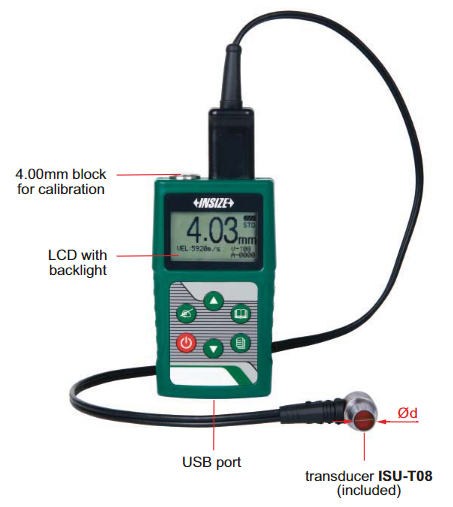

Ultrasonic Thickness Gage - ISU-250C

Save 25%

Size: ISU-250C
Price:
Rs. 102,195 Rs. 135,919

Tax included Shipping calculated at checkout

Description

Features:-
  • Measure the thickness from one side of objects, suitable for pipes, tanks, etc.
  • Applicable material: metal, plastic glass, nylon, resin ceramic, ice.
  • Tolerance measurment
  • Average calculation of maximum 9 readings
  • Data can be input in excel and word as keyboard signal
  • Inspection certificate traceable to DKD lab Germany

    Specification:-

    Attribute Value
    Code ISU-250C
    Measuring range refer to specification of transducers
    Resolution 0.1/0.01mm
    Accuracy

    +0.04mm (H<10mm)
    +(0.04+H/1000)mm(10<H<100mm) +H/333mm(H>100mm)
    H is the thickness to be measured in mm

    Velocity 1000-9999m/s
    Operation temperature of main unit -20~50°C
    Output USB
    Measuring unit mm/inch
    Power supply 2x1.5V AAA batteries
    Dimension 64x116x27mm
    Weight 220g
