Ultrasonic Thickness Gauge (Basic Type) - ISU

Save 22%

Code: ISU-100D
Price:
Rs. 27,550 Rs. 35,264

Tax included Shipping calculated at checkout

Description

Features:-

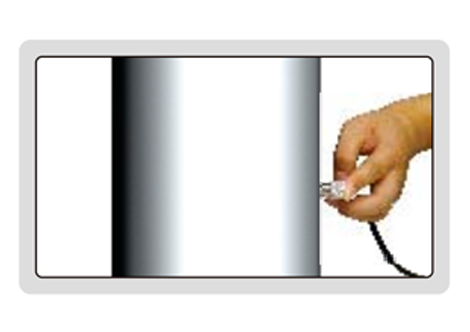

  • MEASURE THE THICKNESS FROM ONE SIDE OF OBJECTS, SUITABLE FOR PIPES,  TANKS, ETC.
  • APPLICABLE MATERIAL: METAL, PLASTIC GLASS, NYLON, RESIN CERAMIC, ICE.
  • INSPECTION CERTIFICATE
  • ATTENTION: NOT SUITABLE FOR CASTING WORKPIECES


MEASURING RANGE 0.8-300MM
RESOLUTION 0.01MM(RANGE<100MM) 0.1MM (RANGE(>)100MM)
ACCURACY +0.04MM (RANGE<10MM) +(0.04+H/1000)MM (RANGE 10~100MM) H/333MM (RANGE>100MM) H IS THE THICKNESS TO BE MEASURED IN MM
TRANSDUCER
FREQUENCY 5MHz
DIAMETER (∅d) 10.8MM
MINIMUM SIZE OF PIPE FOR MEASUREMENT 20x1.2MM (DIAMETER x WALL THICKNESSES)
APPLICABLE TEMPERATURE <60°C
VELOCITY 1000-9999M/S
POWER SUPPLY 2xAAA BATTERIES
DIMENSION 114x64x28MM
WEIGHT 200g
