Ultrasonic Hardness Tester -9646

Save 25%

Size: 9646-300
Price:
Rs. 137,949 Rs. 183,469

Tax included Shipping calculated at checkout

Description

Features:-

  • Small size, light weight, portable, convenient for on-line measurement and can be used to measure large workpieces
  • Support 360°measurement, fast test speed, the fastest results in 1 second
  • Standard Vickers indentation, small test indentation and low damage to the workpiece
  • 100 measurement data sets and 10 calibration data sets can be stored

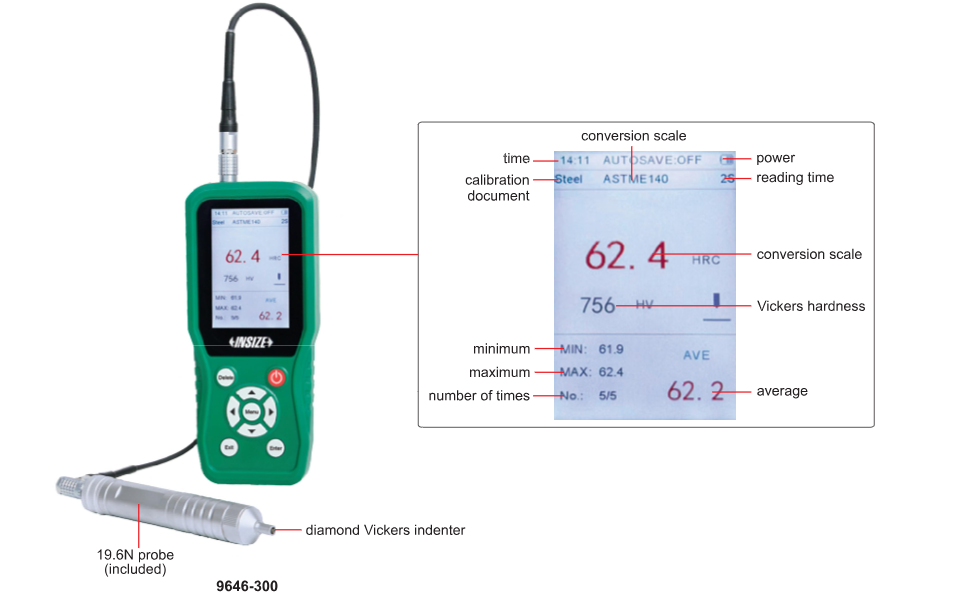

  • Large display, directly shows the current measured value, maximum value, minimum value, average value and unit conversion value
  • For unspecified conversion tables and unknown materials, multi-point calibration on any hardness scale you can choose to eliminate of systematic errors due to conversion tables
  • According to DIN 50159, ASTM A1038 standards
  • Supplied with manufacturer inspection certificate.
  • https://youtu.be/wUZOxXYmKMI

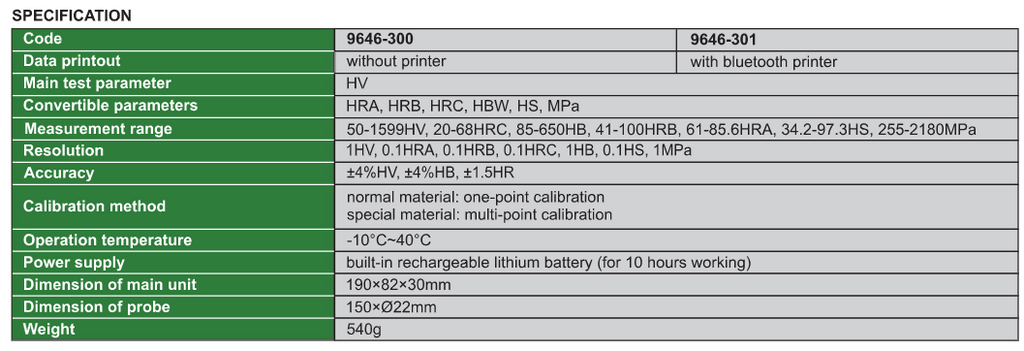

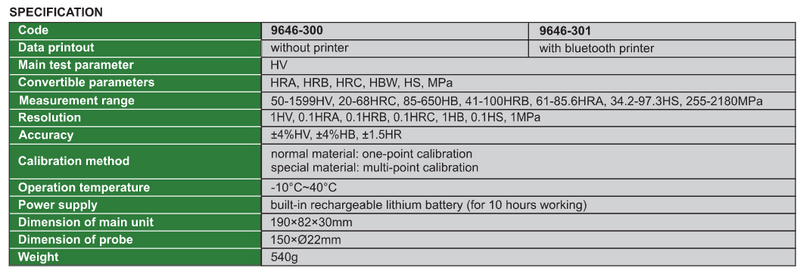

Code 9646-300 9646-301
Data printout without printer with bluetooth printer
Main test parameter HV
Convertible parameters HRA HRB HRC HBW HS MPa
Measurement range 50-1599HV 20-68HRC 85-650HB 41-100HRB 61-85.6HRA 34.2-97.3HS 255-2180MPa
Resolution 1HV 0.1HRA 0.1HRB 0.1HRC 1HB 0.1HS 1MPa
Accuracy ±4%HV ±4%HB ±1.5HR
Calibration method normal material one-point calibration special material multi-point calibration
Operation temperature -10°C~40°C
Power supply built-in rechargeable lithium battery (for 10 hours working)
Dimension of main unit 190×82×30mm
Dimension of probe 150ר22mm
Weight 540g
