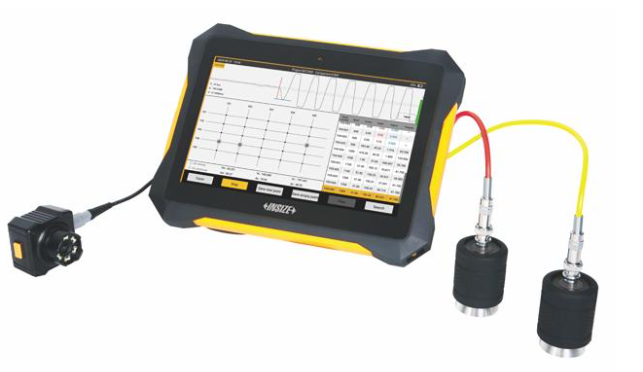

Ultrasonic Flaw Detector For Concrete - UFD-Q

Save 25%

Size: UFD-Q390
Price:
Rs. 395,685 Rs. 526,260

Tax included Shipping calculated at checkout

Description

Features:

  • Ultrasonic rebound synthesis method to measure the strength, defects, depth and width of the 4 major functions in one
  • Automatically read the sound time and wave amplitude of a wave, without manual judgment operation, and directly display the test results
  • Manually adjustable sound time line. data correction for more accurate detection results
  • During the test process, you can arbitrarily playback, overwrite and delete the waveform of the stored measurement points
  • 10" high brightness touch screen, intelligent interaction interface, easy to learn and use convenient operation
  • 4cm thin body, light weight and easy to carry
  • Computer dedicated analysis software is powerful, data analysis and processing, print reports easily

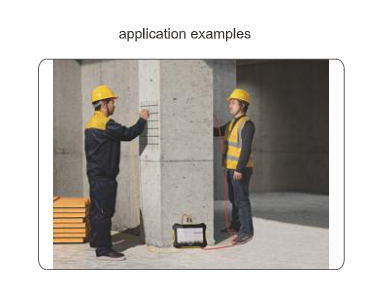

  • Suitable for: concrete strength testing, internal defect testing, surface crack depth testing, crack width testing in the construction industry; acoustic parameter testing of rock and non-metallic concrete materials, etc
  • MATERIAL AGAINST ORDER

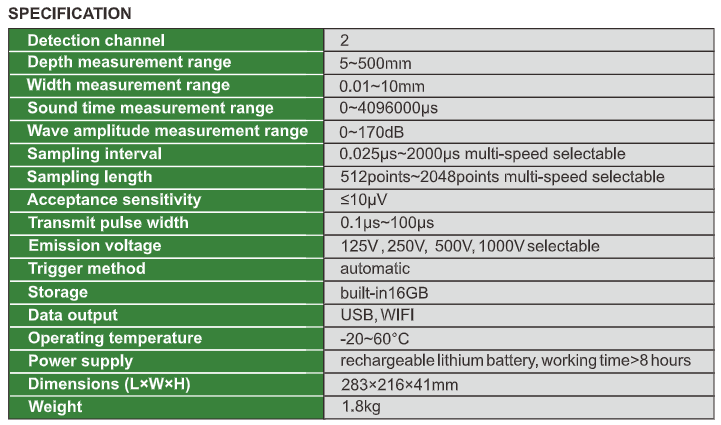

Detection channel 2
Depth measurement range 5~500mm
Width measurement range 0.01~10mm
Sound time measurement range 0~4096000μs
Wave amplitude measurement range 0~170dB
Sampling interval 0.025μs~2000μs multi-speed selectable
Sampling length 512points~2048points multi-speed selectable
Acceptance sensitivity ≤10μV
Transmit pulse width 0.1μs~100μs
Emission voltage 125V 250V 500V 1000V selectable
Trigger method automatic
Storage built-in16GB
Data output USB WIFI
Operating temperature -20~60°C
Power supply rechargeable lithium battery working time>8 hours
Dimensions (L×W×H) 283×216×41mm
Weight 1.8kg
