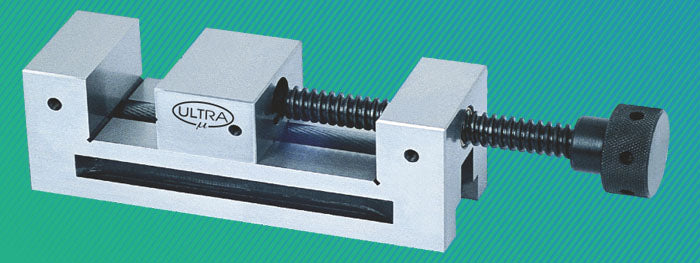

Series UL-829 , Grinding Vice Screw Type (Economy Model)

Save 15%

Title: UL-82901 (65MM)
Price:
Rs. 4,879 Rs. 5,759

Tax included Shipping calculated at checkout

Description

  • PRODUCED OF HIGH-QUALITY STEEL, CARBURIZED TO W SURFACE
    HARDNESS: HRC 58-62.
  • PARALLELISM 0.007MM / 100MM, SQUARENESS 0.015 MM.
  • QUICKLY TO CLAMP AND EASY TO OPERATE.
  • USED FOR PRECISION MEASUREMENT AND INSPECTION PRECISION GRINDING, EDM, AND WIRE-CUTTING MACHINE.
  • SPECIAL SIZE CAN BE MANUFACTURED ON REQUEST.



SPECIFICATIONS
SR.NO. CAT NO. SIZE (MM) OPENING (MM) JAW HEIGHT (MM)
1 UL-82901 155LX50WX50H 0-65 25
2 UL-82902 190LX63WX65H 0-85 32
3 UL-82903 210LX73WX73H 0-100 35
4 UL-82904 250LX88WX88H 0-125 40
