Trigger-Type 3D Probe (Audible And Visual Alarm)-9410

Save 25%

Size: 9410
Price:
Rs. 42,555 Rs. 56,598

Tax included Shipping calculated at checkout

Description

Features:-

  • Suitable for all kinds of machinery centers, CNC boring machines, milling machines, drilling and tapping centers
  • Suitable for workpiece detection of various solid materials
  • Manually set the workpiece coordinates and machining reference points before CNC machining process
  • In the process of CNC machining, manually detect and control key dimensions and position coordinates and their accuracy
  • Standard ⌀20mm shank diameter, held by CNC
  • LED indicator and buzzer indicate the trigger state of the probe
  • Using lithium battery charging technology, no need to replace the battery
  • The battery (5% utilization rate per shift) can be used continuously for 90 days
  • Type C-interface
  • IP67 Dust/waterproof
  • Optional accessory: styli and extension bar

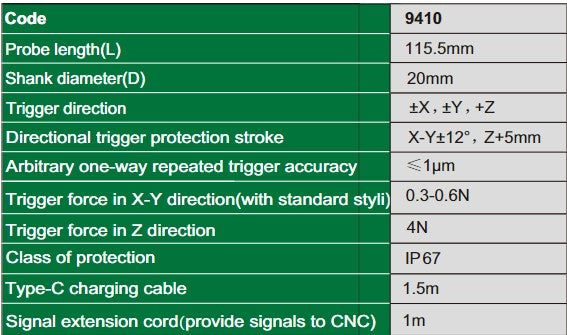

    Code 9410

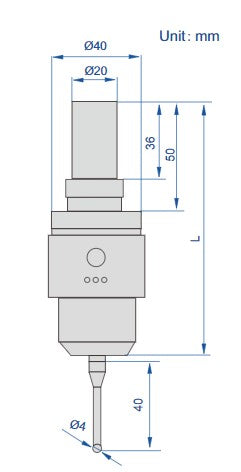

    Probe Length (L) 115.5mm
    Shank Diameter (D) 20mm
    Trigger direction  +X, +Y, +Z
    Directional trigger protection stroke X-Y +12, z+5mm
    Arbitary one-way repleated trigger accuracy <1μm
    Trigger force in X-Y direction (with standard styli) 0.3-0.6N
    Trigger force in Z direction  4N
    Class of protection  IP67
    Type-C charging cable 1.5m
    Signal Extension cord (provide signals to cnc) 1m
