Torque Wrench Test Stands - IST-06

Save 25%

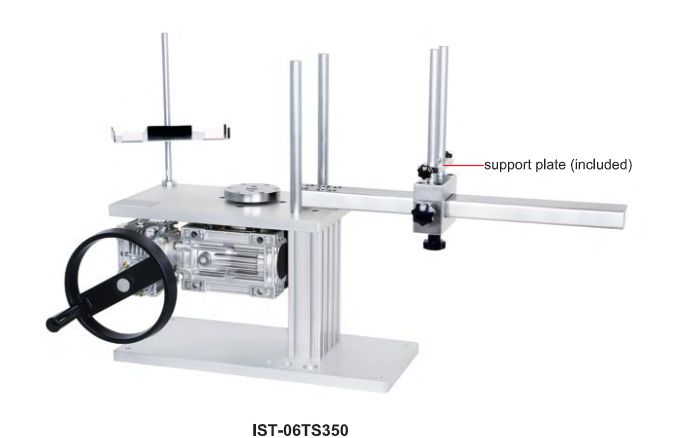

Size: IST-06TS350 (350N.m)
Price:
Rs. 161,949 Rs. 215,929

Tax included Shipping calculated at checkout

Description

Features:-

  • Rotate the wheel to apply force, rotary speed is adjustable
  • Easy operation due to the gear box
  • Used with digital torque testers (IST-TT series)

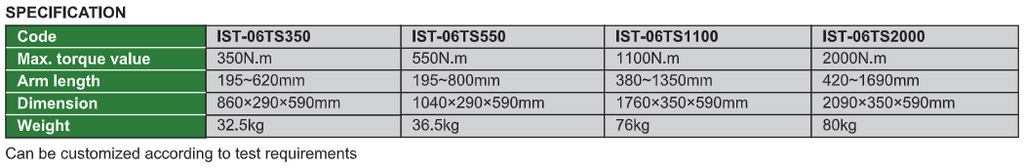

Code IST-06TS350 IST-06TS550 IST-06TS1100 IST-06TS2000
Max. torque value 350N.m 550N.m 1100N.m 2000N.m
Arm length 195~620mm 195~800mm 380~1350mm 420~1690mm
Dimension 860x290x590mm 1040x290x590mm 1760x350x590mm 2090x350x590mm
Weight 32.5kg 36.5kg 76kg 80kg

Can be customized according to test requirements.

Optional Accessory:

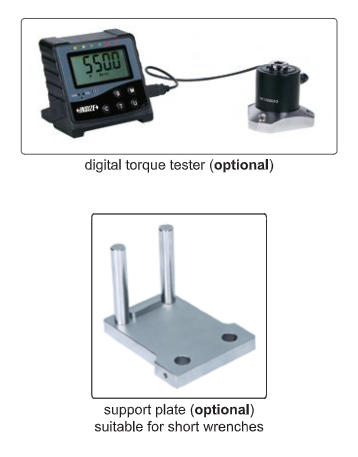

  • Digital torque tester - IST-TT series

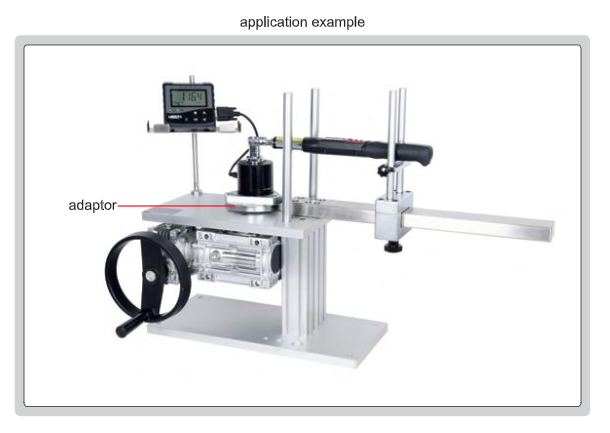

  • Adaptor: IST-06TS-BLOCK1 (suitable for IST-06TS350, IST-06TS550, necessary for IST-TT series, connectable for IST-TT05, IST-TT5, IST-TT30, IST-TT50, IST-TT220, IST-TT550)
  • Adaptor: IST-06TS-BLOCK2 (suitable for IST-06TS1100, IST-06TS2000, necessary for IST-TT series, connectable for IST-TT550, IST-TT1000, IST-TT2200)
  • Support plate: IST-06TS-PLATE (suitable for IST-06TS350, IST-06TS550)
