Torque Testers - IST-HP

Save 25%

Size: IST-HP1 (1N.m)
Price:
Rs. 92,689 Rs. 123,729

Tax included Shipping calculated at checkout

Description

Specifications:-

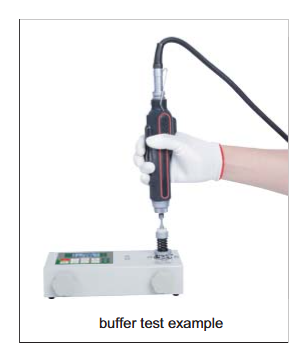

  • For testing electric, pneumatic and manual torque screwdrivers and torque wrenches and other torque tools
  • Clockwise and counter-clockwise operation
  • Peak and track working modes

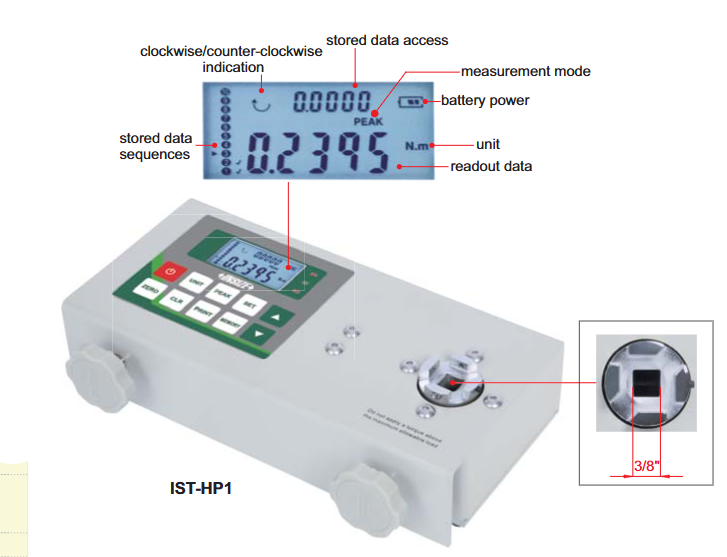

  • High-definition display, backlighting available
  • High sampling frequency for accurate peak capture
  • Unit: N.m, Ib.in, kgf.cm
  • Upper and lower limits can be set, automatic audible and visual alarm with red and green indicator lights and buzzer
  • Store 10 sets of data and calculate the average value

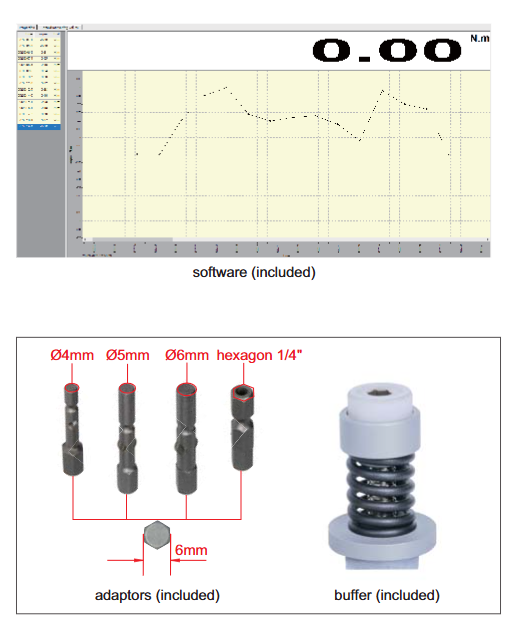

  • Serial RS232 output, connect to PC to view torque curves by test software
  • Automatic zero setting, automatic shutdown
  • Supplied with manufacturer inspection certificate.
  • https://youtu.be/um5vucCbqeI

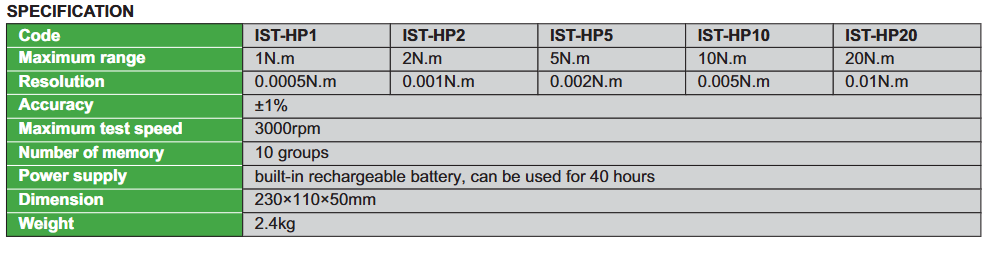

Code IST-HP1 IST-HP2 IST-HP5 IST-HP10 IST-HP20
Maximum range 1N.m 2N.m 5N.m 10N.m 20N.m
Resolution 0.0005N.m 0.001N.m 0.002N.m 0.005N.m 0.01N.m
Accuracy ±1%
Maximum test speed 3000rpm
Number of memory 10 groups
Power supply built-in rechargeable battery, can be used for 40 hours
Dimension 230×110×50mm
Weight 2.4kg
