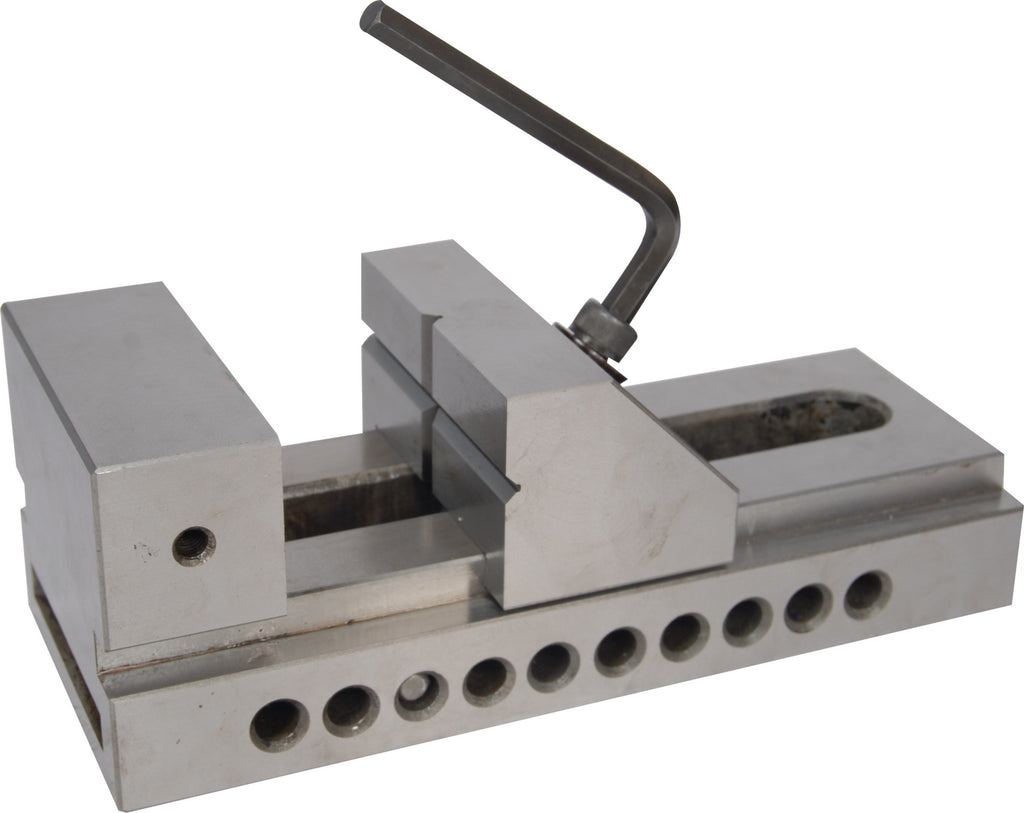

Tools Marker's Precision screw Less Vice (Iron Steel Body) - Apex Code 772T

Save 22%

Jaw Size: 3 Inches / 75mm
Price:
Rs. 15,999 Rs. 20,479

Tax included Shipping calculated at checkout

Description

Features :
  • The rapid positioning notches allow the vice to be locked in any position by means of an allen key provided with the vice.
  • Vee grooves in the sliding jaw, both horizontal and vertical, facilitate holding of round jobs.
  • Jaw pressure on work piece is forward and downward for repeatable positioning and maximum holding power
Accuracy :
  • Parallelism : within (15 Microns)
    Perpendicularity : within (15 Microns)
Construction 772T :
  • Manufactured from Tool Steel Body, these solid one piece vices are fully hardened (52-60 HRC) and tempered to ensure stability and durability.
Accuracy :
  • Parallelism : within 8 microns
    Perpendicularity : within 12 microns



        SPECIFICATIONS
RANGE 3 Inches 4 Inches
Width of Jaws (In mm)
75 97
Depth of Jaws (In mm)
40 90
Opening of Jaws (In mm)
105 130
Length Overall (In mm)
74 94
Height Overall (In mm
196 245
Weight In (Kgs) 4 8
