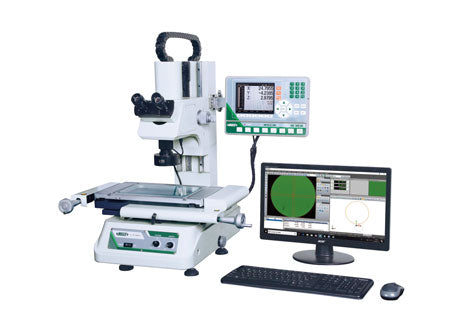

Toolmaker Microscope - ISD-VMM205D

Save 25%

Size: ISD-VMM205D
Price:
Rs. 749,979 Rs. 997,470

Tax included Shipping calculated at checkout

Description

Features:-

  • Supplied with manufacturer inspection certificate
    Code Monocular ISD-VMM205D
    X/Y Axis travel  150x100mm
    Z axis travel  150mm
    Metal stage size 354x228mm
    Glass stage size 210x160mm
    Resolution of X/Y/Z axis  0.5μm
    Accuracy of X/Y axis (3.5+L/100)μm (L is the measuring length in mm)
    Repeatability 2μm
    Camera 1/3" color CCd, 0.3M pixel
    Optical magnification 30X (with 3X objective)
    Image magnification 114X (on 19" monitor)
    Illumination surface and contour with adjustable LED
    Max. weight of workpiece  25kg
    Power supply 100V~240V, 50/60Hz
    Operation system windows 7/8/10
    Drive method Manual
    Dimension (LxWxD) 540x667x850mm
    Weight 100kg
