Thermal Imaging Cameras (Economic Type ) - 0239

Save 25%

Model no.: 0239-HT96A
Price:
Rs. 25,409 Rs. 33,879

Tax included Shipping calculated at checkout

Description

Description

The Insize 0239-HT96 Infrared Thermal Imaging Cameras (Economic Type) are suitable for electric power, construction, mechanical industry, and other applications. Equipped with a 96×96 infrared detector with super resolution enhancement to 192×192, they offer wide imaging angle coverage with discernible details and defect visualization across an automatic-switching -20°C to 550°C temperature measurement range. IP54 waterproof rated with data output support.

Features

  • Focus-free design, 8.89mrad spatial resolution (IFOV), 50°×50° field of view, 0.1m minimum object distance
  • Center spot, maximum spot and minimum spot measurement tools
  • Built-in 4G storage; JPG image and MP4 video storage; screen casting support
  • Software included: file management, thermal image analysis, real-time transmission, report editing

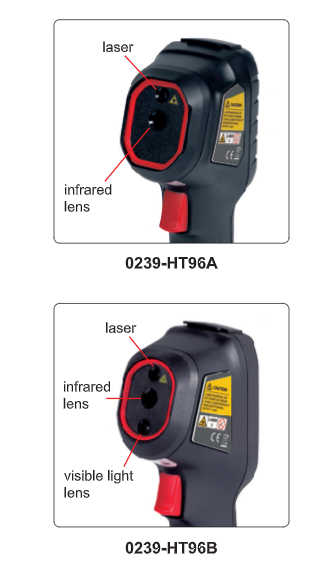

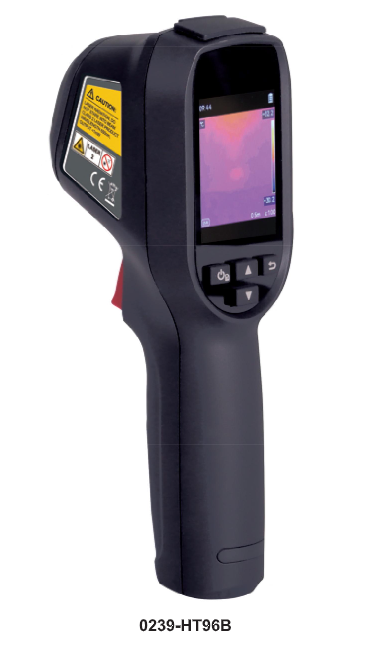

  • Two variants: 0239-HT96A (infrared image mode only) and 0239-HT96B (adds 640×480 visual camera with infrared/visual/fusion image modes)
  • Optional accessory: Tripod (0701-TR175)

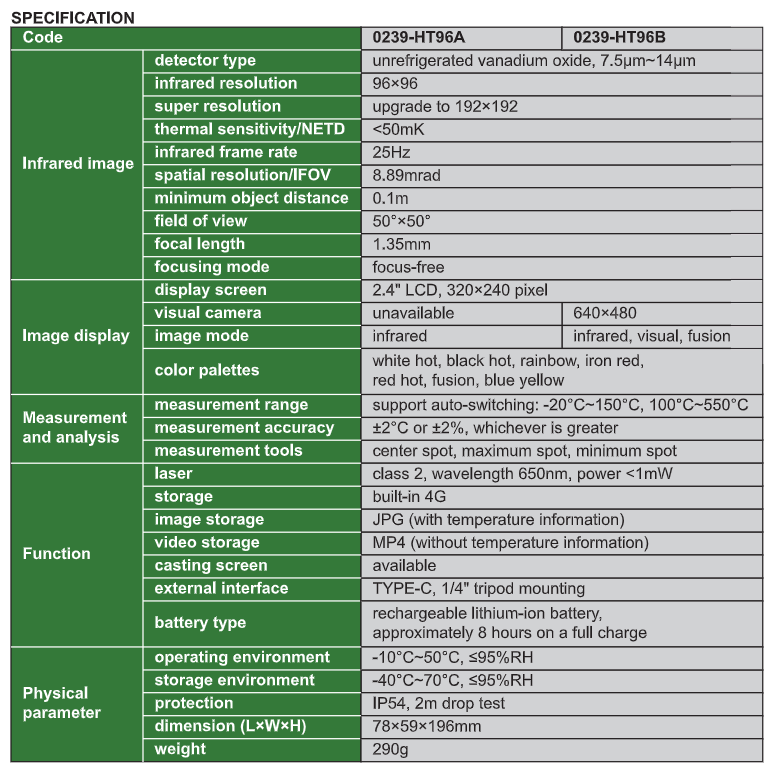

Specification

Category Parameter 0239-HT96A 0239-HT96B
Infrared image Detector type Unrefrigerated vanadium oxide, 7.5µm~14µm
Infrared resolution 96×96
Super resolution Upgrade to 192×192
Thermal sensitivity/NETD <50mK
Infrared frame rate 25Hz
Spatial resolution/IFOV 8.89mrad
Minimum object distance 0.1m
Field of view 50°×50°
Focal length 1.35mm
Focusing mode Focus-free
Image display Display screen 2.4" LCD, 320×240 pixel
Visual camera Unavailable 640×480
Image mode Infrared Infrared, visual, fusion
Color palettes White hot, black hot, rainbow, iron red, red hot, fusion, blue yellow
Measurement and analysis Measurement range Auto-switching: -20°C~150°C, 100°C~550°C
Measurement accuracy ±2°C or ±2%, whichever is greater
Measurement tools Center spot, maximum spot, minimum spot
Laser Class 2, wavelength 650nm, power <1mW
Storage Built-in 4G
Function Image storage JPG (with temperature information)
Video storage MP4 (without temperature information)
Casting screen Available
External interface TYPE-C, 1/4" tripod mounting
Physical parameter Battery type Rechargeable lithium-ion battery, approximately 8 hours on a full charge
Operating environment -10°C~50°C, ≤95%RH
Storage environment -40°C~70°C, ≤95%RH
Protection IP54, 2m drop test
Dimension (L×W×H) 78×59×196mm
Weight 280g

Standard Delivery

Main unit 1 pc
TYPE-C data cable 1 pc

Optional Accessory

Tripod 0701-TR175
