Thermal Imaging Camera (Manual Focus Type ) - 0238

Save 25%

Model no.: 0238-HT192
Price:
Rs. 151,349 Rs. 201,799

Tax included Shipping calculated at checkout

Description

Description

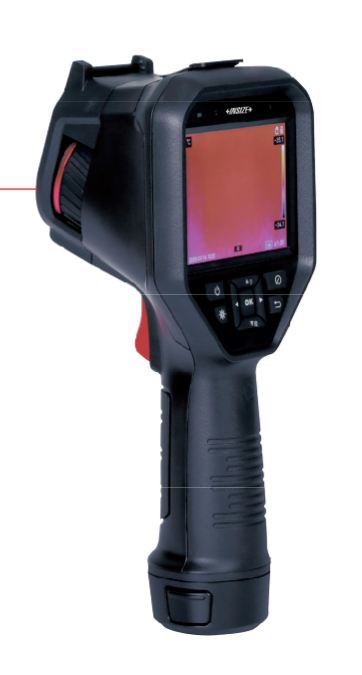

The Insize 0238-HT192 Infrared Thermal Imaging Camera (Manual Focus Type) is suitable for electric power, construction, electrical industry, petrochemical industry, mechanical industry, scientific research, and other applications. Equipped with a 192×144 infrared detector with super resolution enhancement to 384×288, it delivers uniform imaging with discernible details and sharp clarity across an automatic-switching -20°C to 650°C temperature measurement range.

Features

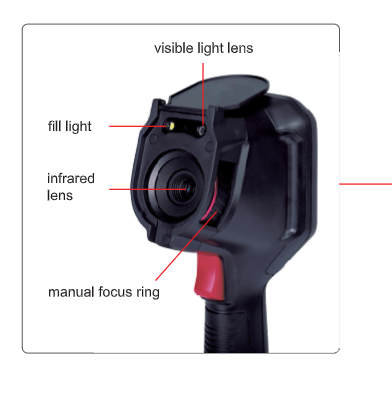

  • Manual focus, F1.0 aperture, 1.74mrad spatial resolution (IFOV), 19°×14° field of view
  • Point, line, rectangle and circle measurement tools with flexible regional emissivity adjustment
  • IP54 waterproof rated, 2m drop tested
  • Built-in WiFi and Bluetooth
  • Software included: file management, thermal image analysis, video analysis, real-time transmission, report editing
  • Companion mobile app for real-time data and video transmission

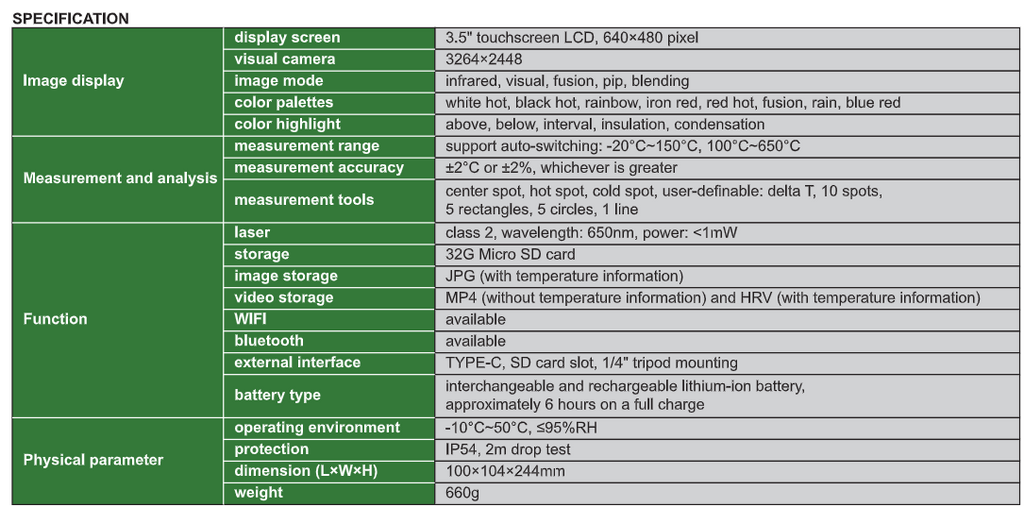

Specification

Category Parameter Specification
Image display Display screen 3.5" touchscreen LCD, 640×480 pixel
Visual camera 3264×2448
Image mode Infrared, visual, fusion, PIP, blending
Color palettes White hot, black hot, rainbow, iron red, red hot, fusion, rain, blue red
Color highlight Above, below, interval, insulation, condensation
Measurement and analysis Measurement range Auto-switching: -20°C~150°C, 100°C~650°C
Measurement accuracy ±2°C or ±2%, whichever is greater
Measurement tools Center spot, hot spot, cold spot, user-definable: delta T, 10 spots, 5 rectangles, 5 circles, 1 line
Function Laser Class 2, wavelength 650nm, power <1mW
Storage 32G Micro SD card
Image storage JPG (with temperature information)
Video storage MP4 (without temperature information) and HRV (with temperature information)
WIFI Available
Bluetooth Available
External interface TYPE-C, SD card slot, 1/4" tripod mount
Battery type Interchangeable and rechargeable lithium-ion battery, approximately 6 hours on a full charge
Physical parameter Operating environment -10°C~50°C, ≤95%RH
Protection IP54, 2m drop test
Dimension (L×W×H) 100×104×244mm
Weight 660g

Standard Delivery

Main unit 1 pc
TYPE-C data cable 1 pc
SD card 1 pc
Lithium-ion battery 2 pcs
Desktop charger 1 pc
Power adapter 1 pc
