Temperature & Humidity Data Logger - THL

Save 25%

Model no.: THL-A05
Price:
Rs. 308,745 Rs. 410,629

Tax included Shipping calculated at checkout

Description

Features:-

  • Suitable for testing the uniformity and fluctuation of temperature and humidity field such as environment test equipment, industrial furnace, verification furnace, etc.
  • 32-channel can be independently configured for thermocouple, resistance temperature detector, humidity, and atmospheric pressure inputs
  • 32-channel independent and synchronous acquisition with configurable parameters such as sampling duration, interval
  • Built-in high-capacity memory that can store up to 500 data sets (10,000 samples per set)
  • User-friendly human-machine interface with touchscreen operation, featuring functions such as measurement display, priming
  • automatic calibration, manual correction storage, and parameter selling
  • Computer software is included
  • MATERIAL AGAINST ORDER

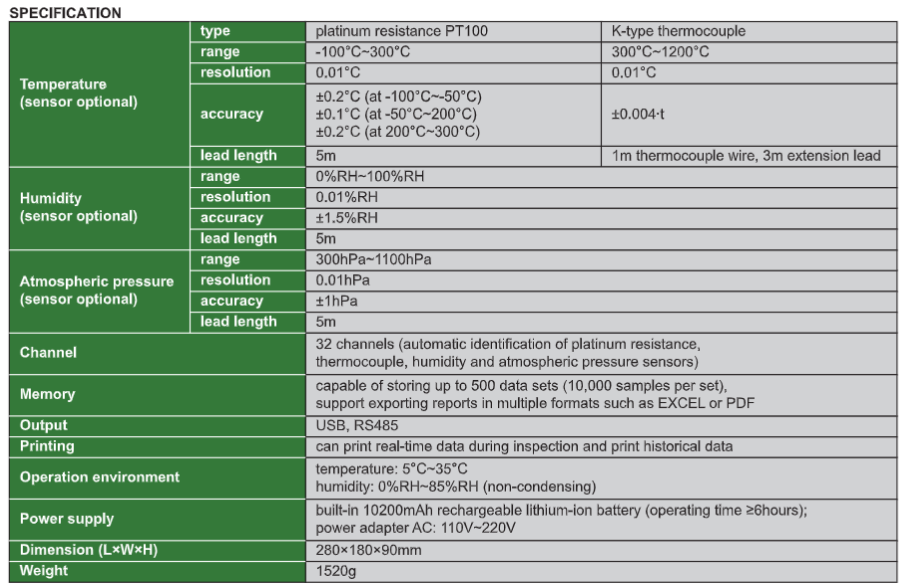

Category Item Description

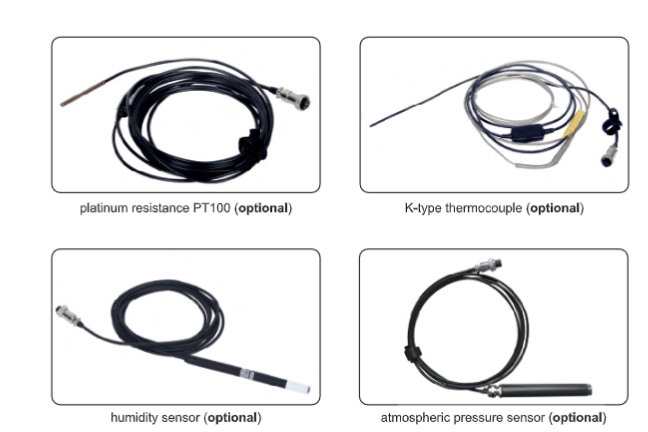

Temperature type platinum resistance PT100
(sensor optional) range -100°C~300°C
resolution 0.01°C
accuracy ±0.2°C (at -100°C~50°C)
±0.1°C (at -50°C~200°C)
±0.2°C (at 200°C~300°C)
lead length 5m
type K-type thermocouple
range 300°C~1200°C
resolution 0.01°C
accuracy ±0.004·t
lead length 1m thermocouple wire, 3m extension lead
Humidity range 0%RH~100%RH
(sensor optional) resolution 0.01%RH
accuracy ±1.5%RH
lead length 5m
Atmospheric pressure range 300hPa~1100hPa
(sensor optional) resolution 0.01hPa
accuracy ±1hPa
lead length 5m
Channel 32 channels (automatic identification of platinum resistance, thermocouple, humidity and atmospheric pressure sensors)
Memory capable of storing up to 500 data sets (10,000 samples per set), support exporting reports in multiple formats such as EXCEL or PDF
Output USB, RS485
Printing can print real-time data during inspection and print historical data
Operation environment temperature 5°C~35°C
humidity 0%RH~85%RH (non-condensing)
Power supply built-in 10200mAh rechargeable lithium-ion battery (operating time ≥6hours); power adapter AC: 110V~220V
Dimension (L×W×H) 280×180×90mm
Weight 1520g
