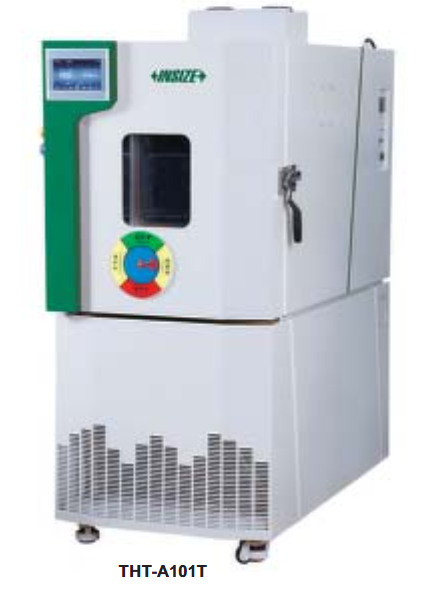

Temperature & Humidity Chambers - THT-A

Save 25%

Size: THT-A101T
Price:
Rs. 641,145 Rs. 852,720

Tax included Shipping calculated at checkout

Description

Specifications:-

  • The chamber is equipped with an independent operating system with 7 inch or 10.1 inch touch screen controller
  • Intelligent refrigeration and dehumidification system, combined with energy-saving control algorithm, can adjust the refrigeration level and
  • save energy Compared with traditional machines, it can save 30-45% of electricity
  • It can output excel data report through USB port

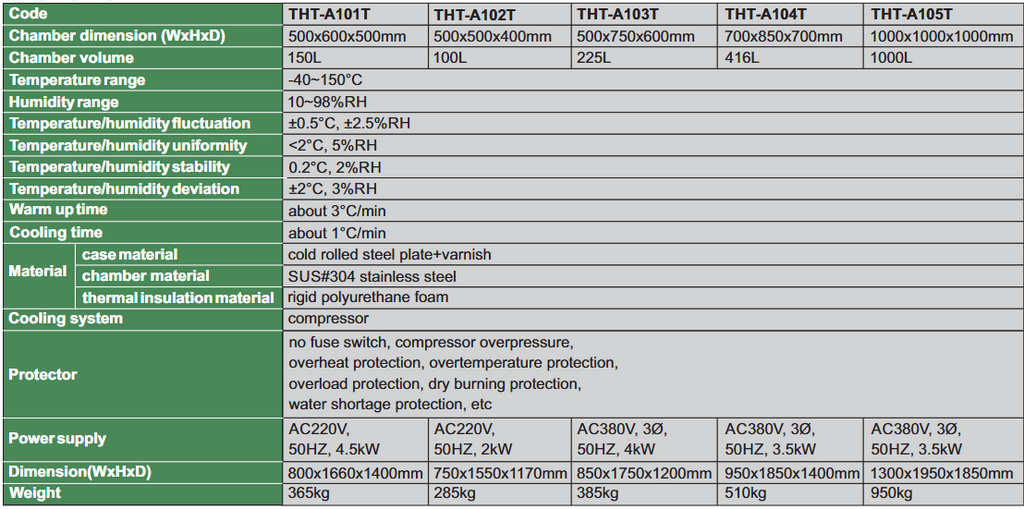

Code THT-A101T THT-A102T THT-A103T THT-A104T THT-A105T
Chamber dimension (WxHxD) 500x600x500mm 500x500x400mm 500x750x600mm 700x850x700mm 1000x1000x1000mm
Chamber volume 150L 100L 225L 416L 1000L
Temperature range -40~150°C

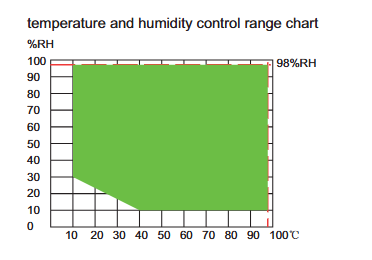

Humidity range 10~98%RH
Temperature/humidity fluctuation ±0.5°C ±2.5%RH
Temperature/humidity uniformity <2°C 5%RH
Temperature/humidity stability 0.2°C 2%RH
Temperature/humidity deviation ±2°C 3%RH
Warm up time about 3°C/min
Cooling time about 1°C/min
Material case material cold rolled steel plate+varnish
chamber material SUS#304 stainless steel
thermal insulation material rigid polyurethane foam
Cooling system compressor
Protector no fuse switch compressor overpressure overheat protection overtemperature protection overload protection dry burning protection water shortage protection etc
Power supply AC220V 50HZ 4.5kW AC220V 50HZ 2kW AC380V 3Ø 50HZ 4kW AC380V 3Ø 50HZ 3.5kW AC380V 3Ø 50HZ 3.5kW
Dimension(WxHxD) 800x1660x1400mm 750x1550x1170mm 850x1750x1200mm 950x1850x1400mm 1300x1950x1850mm
Weight 365kg 285kg 385kg 510kg 950kg
