Static Torque Sensors - IST-NJ

Save 25%

Size: IST-NJ10S (10N.m)
Price:
Rs. 25,349 Rs. 33,715

Tax included Shipping calculated at checkout

Description

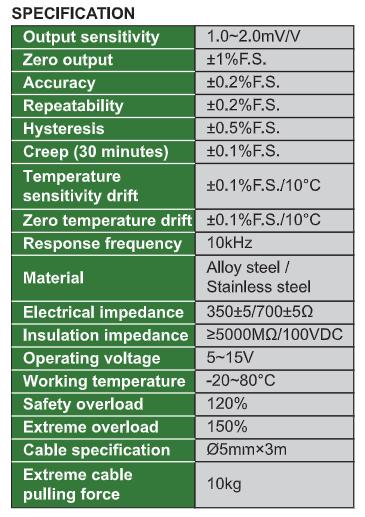

Specifications :-

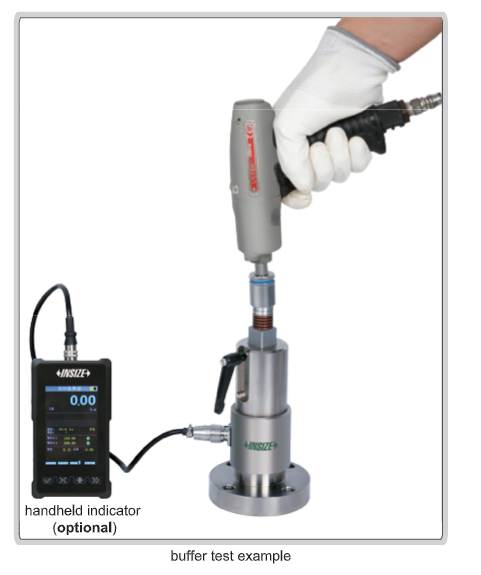

  • Wide range of applications: for testing electric, pneumatic and manual torque screwdrivers and torque wrenches and other torque tools and torque monitoring
  • Clockwise and counter-clockwise operation
  • High overall accuracy, good long-term stability
Output sensitivity 1.0~2.0mV/V
Zero output ±1%F.S.
Accuracy ±0.2%F.S.
Repeatability ±0.2%F.S.
Hysteresis ±0.5%F.S.
Creep (30 minutes) ±0.1%F.S.
Temperature sensitivity drift ±0.1%F.S./10°C
Zero temperature drift ±0.1%F.S./10°C
Response frequency 10kHz
Material Alloy steel /
Stainless steel
Electrical impedance 350±5/700±5Ω
Insulation impedance ≥5000MΩ/100VDC
Operating voltage 5~15V
Working temperature -20~80°C
Safety overload 120%
Extreme overload 150%
Cable specification Ø5mm×3m
Extreme cable pulling force 10kg
