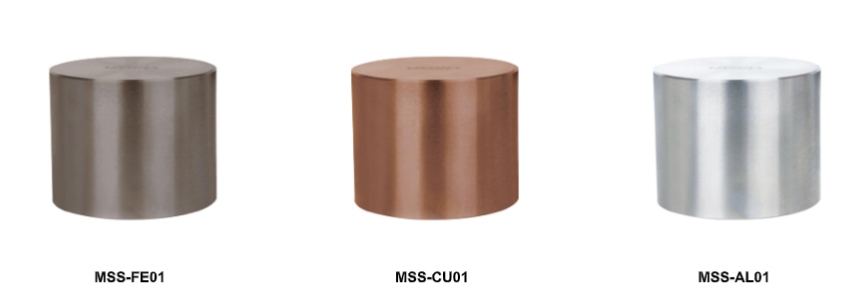

Standard Samples For Spectral Analysis - MSS

Save 25%

Size: MSS-FE01
Price:
Rs. 8,230 Rs. 10,946

Tax included Shipping calculated at checkout

Description

Specification:-

  • Can be used for calibration & quality control of spectrograph measurement curves
  • Can be customized based on the required range of element content
  • Supplied with manufacturer inspection certificate.

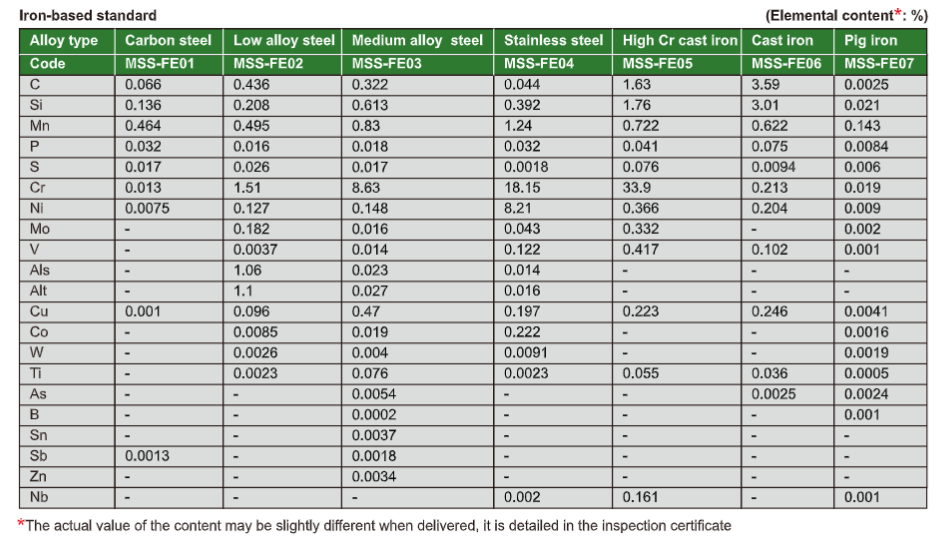

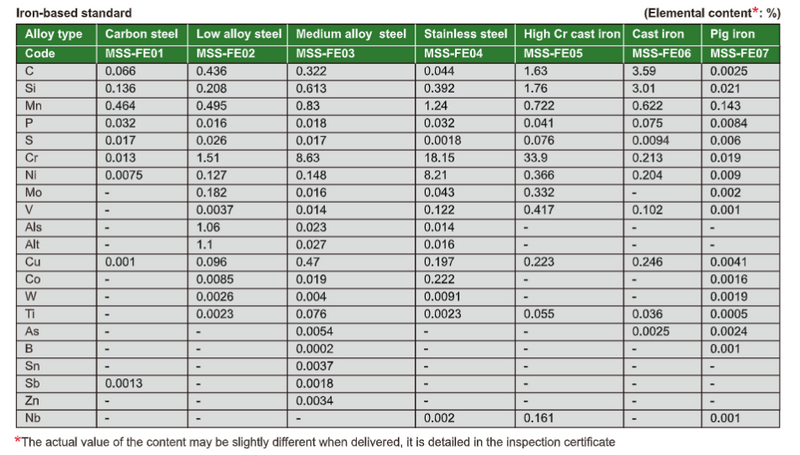

Alloy type Carbon steel Low alloy steel Medium alloy steel Stainless steel High Cr cast iron Cast iron Pig iron
Code MSS-FE01 MSS-FE02 MSS-FE03 MSS-FE04 MSS-FE05 MSS-FE06 MSS-FE07
C 0.066 0.436 0.322 0.044 1.63 3.59 0.0025
Si 0.136 0.208 0.613 0.392 1.76 3.01 0.021
Mn 0.464 0.495 0.83 1.24 0.722 0.622 0.143
P 0.032 0.016 0.018 0.032 0.041 0.075 0.0084
S 0.017 0.026 0.017 0.0018 0.076 0.0094 0.006
Cr 0.013 1.51 8.63 18.15 33.9 0.213 0.019
Ni 0.0075 0.127 0.148 8.21 0.366 0.204 0.009
Mo - 0.182 0.016 0.043 0.332 - 0.002
V - 0.0037 0.014 0.122 0.417 0.102 0.001
Als - 1.06 0.023 0.014 - - -
Alt - 1.1 0.027 0.016 - - -
Cu 0.001 0.096 0.47 0.197 0.223 0.246 0.0041
Co - 0.0085 0.019 0.222 - - 0.0016
W - 0.0026 0.004 0.0091 - - 0.0019
Ti - 0.0023 0.076 0.0023 0.055 0.036 0.0005
As - - 0.0054 - - 0.0025 0.0024
B - - 0.0002 - - - 0.001
Sn - - 0.0037 - - - -
Sb 0.0013 - 0.0018 - - - -
Zn - - 0.0034 - - - -
Nb - - - 0.002 0.161 - 0.001

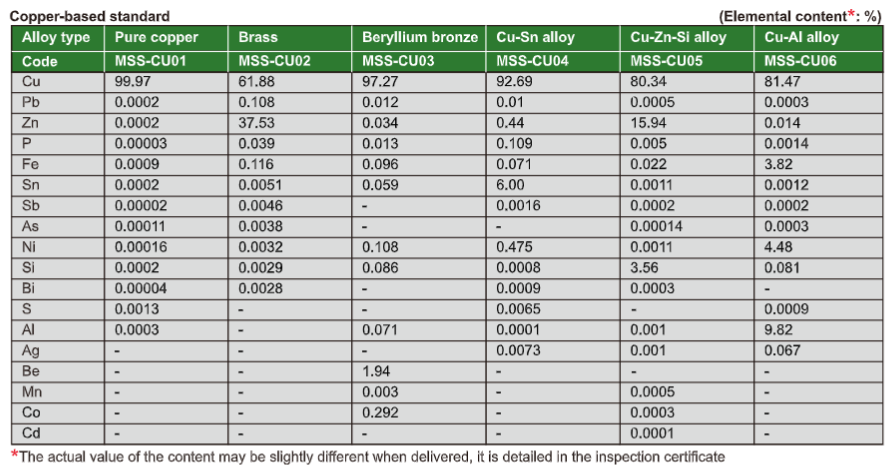

Alloy type Pure copper Brass Beryllium bronze Cu-Sn alloy Cu-Zn-Si alloy Cu-Al alloy
Code MSS-CU01 MSS-CU02 MSS-CU03 MSS-CU04 MSS-CU05 MSS-CU06
Cu 99.97 61.88 97.27 92.69 80.34 81.47
Pb 0.0002 0.108 0.012 0.01 0.0005 0.0003
Zn 0.0002 37.53 0.034 0.44 15.94 0.014
P 0.00003 0.039 0.013 0.109 0.005 0.0014
Fe 0.0009 0.116 0.096 0.071 0.022 3.82
Sn 0.0002 0.0051 0.059 6.00 0.0011 0.0012
Sb 0.00002 0.0046 - 0.0016 0.0002 0.0002
As 0.00011 0.0038 - - 0.00014 0.0003
Ni 0.00016 0.0032 0.108 0.475 0.0011 4.48
Si 0.0002 0.0029 0.086 0.0008 3.56 0.081
Bi 0.00004 0.0028 - 0.0009 0.0003 -
S 0.0013 - - 0.0065 - 0.0009
Al 0.0003 - 0.071 0.0001 0.001 9.82
Ag - - - 0.0073 0.001 0.067
Be - - 1.94 - - -
Mn - - 0.003 - 0.0005 -
Co - - 0.292 - 0.0003 -
Cd - - - - 0.0001 -

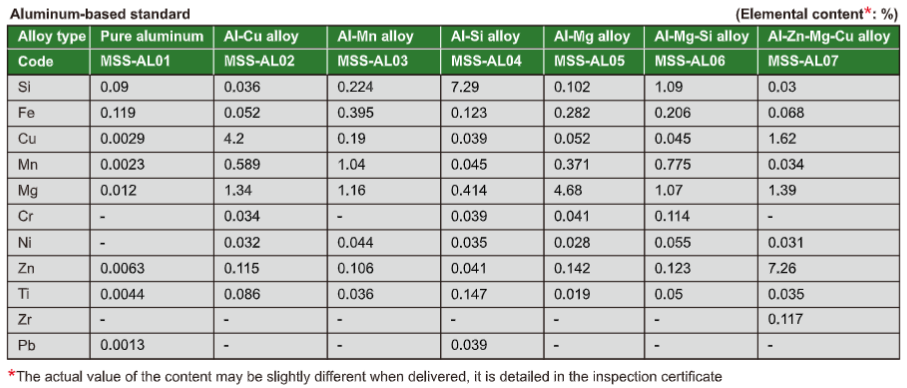

Alloy type Pure aluminum Al-Cu alloy Al-Mn alloy Al-Si alloy Al-Mg-Si alloy Al-Zn-Mg-Cu alloy
Code MSS-AL01 MSS-AL02 MSS-AL03 MSS-AL04 MSS-AL06 MSS-AL07
Si 0.09 0.036 0.224 7.29 1.09 0.03
Fe 0.119 0.052 0.395 0.123 0.206 0.068
Mg 0.012 1,34 1,16 0.414 1.07 1.39
Cr - 0.034 - 0.039 0.114 -
Ni - 0.032 0.044 0.035 0.055 0.031
Zn 0.0063 0.115 0.106 0.041 0.123 7.26
Ti 0.0044 0.086 0.036 0.147 0.05 0.035
Zr - - - - - 0.117
Pb 0.0013 - - 0.039 - -
