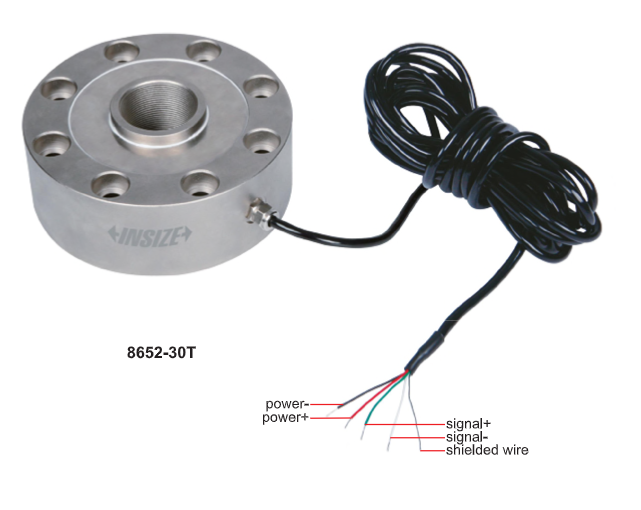

Spoke Type Force Sensors - 8652

Save 25%

Size: 8652-1K
Price:
Rs. 8,885 Rs. 11,815

Tax included Shipping calculated at checkout

Description

Specifications:-

  • Characteristic: bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel
  • Application fields: universal material testing machines, hopper scales, hook scales, packaging scales, belt scales, plug-in force testers and other tension and pressure testing instruments as well as automation equipments

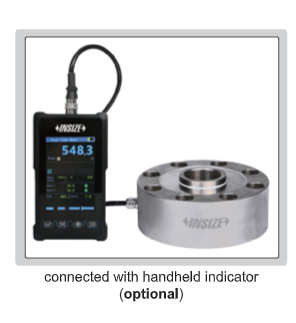

  • If one indicator is used for multiple sensors, customization is required.

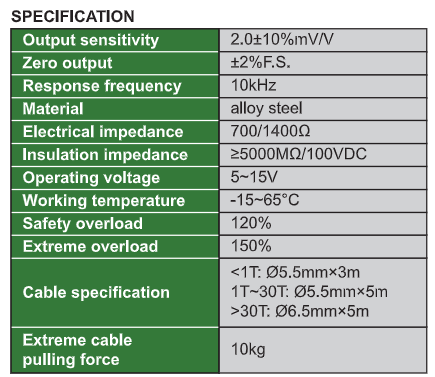

Output sensitivity 2.0±10%mV/V
Zero output ±2%F.S.
Response frequency 10kHz
Material alloy steel
Electrical impedance 700/1400Ω
Insulation impedance ≥5000MΩ/100VDC
Operating voltage 5~15V
Working temperature -15~65°C
Safety overload 120%
Extreme overload 150%
Cable specification <1T: Ø5.5mm×3m
1T~30T: Ø5.5mm×5m

>30T: Ø6.5mm×5m
Extreme cable pulling force 10kg
