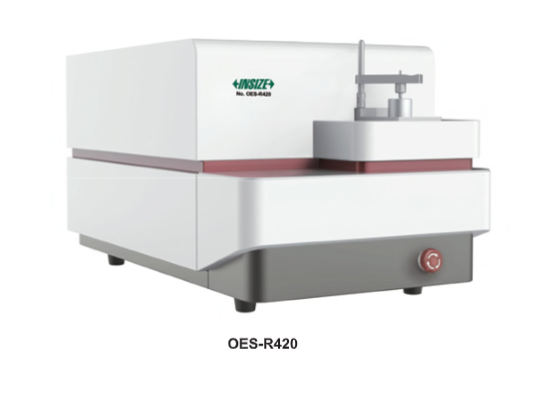

Spark Direct Reading Spectrometer (Standard Type) - OES

Save 25%

Size: OES-R420
Price:
Rs. 2,198,815 Rs. 2,924,520

Tax included Shipping calculated at checkout

Description

Specification:-

  • Widely used in metallurgy, casting, machinery, iron and steel and non-ferrous metal industries, etc.
  • Can be used for sample analysis of metals and their alloys such as Fe, Al, Cu, Ni, Co, Mg, Ti, Zn, Pb, Sn, Mn, etc.
  • It can automatically calibrate the pixel drift to ensure the stability of the optical system
  •  Fractional exposure is used to lower the detection limit of trace elements
  • Equipped with a coaxial spinning air excitation stage, pressurized self-purge, excitation for thousands of times without cleaning
  • Supports intelligent grade recognition, automatic carbon equivalent calculation, etc.
  • The software is available in multiple languages (Chinese, English, German, Spanish)
  • https://youtu.be/btOoj5QhPzI

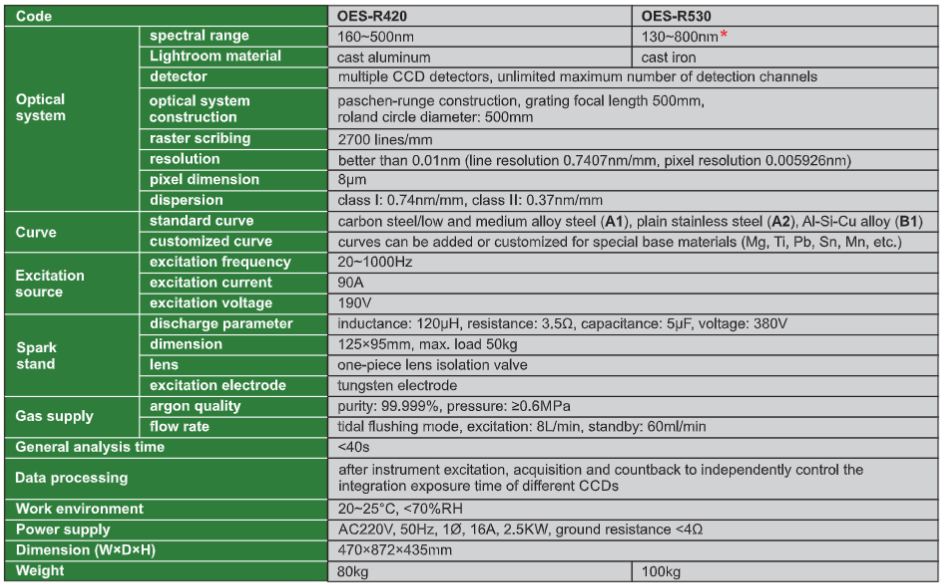

Code OES-R420
Optical System spectral range 160~500nm
Lightroom material cast aluminum
detector multiple CCD detectors unlimited maximum number of detection channels
optical system construction paschen-runge construction grating focal length 500mm roland circle diameter 500mm
raster scribing 2700 lines/mm
resolution better than 001nm line resolution 07407nm/mm pixel resolution 0005926nm
pixel dimension 8μm
dispersion class I 074nm/mm class II 037nm/mm

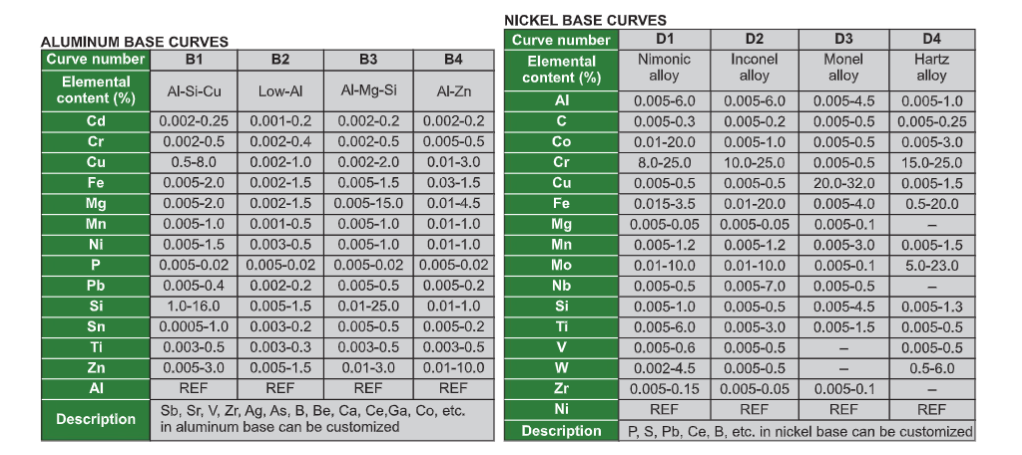

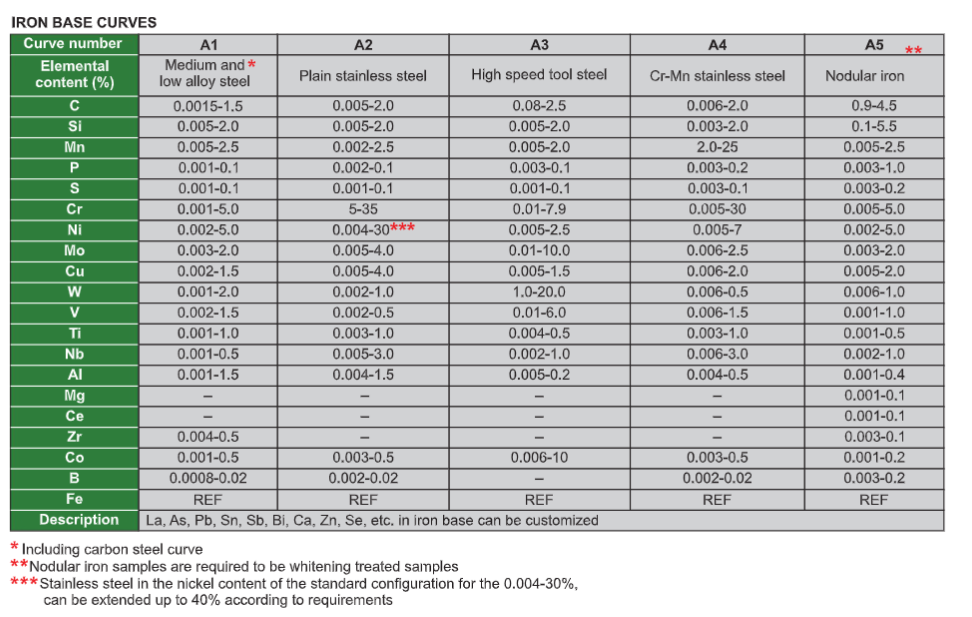

Curve standard curve carbon steel/low and medium alloy steel (A1) plain stainless steel (A2) Al-Si-Cu alloy (B1)

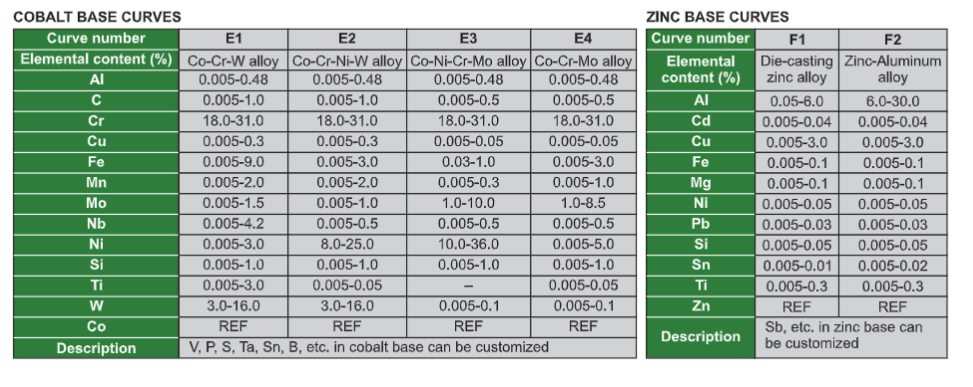

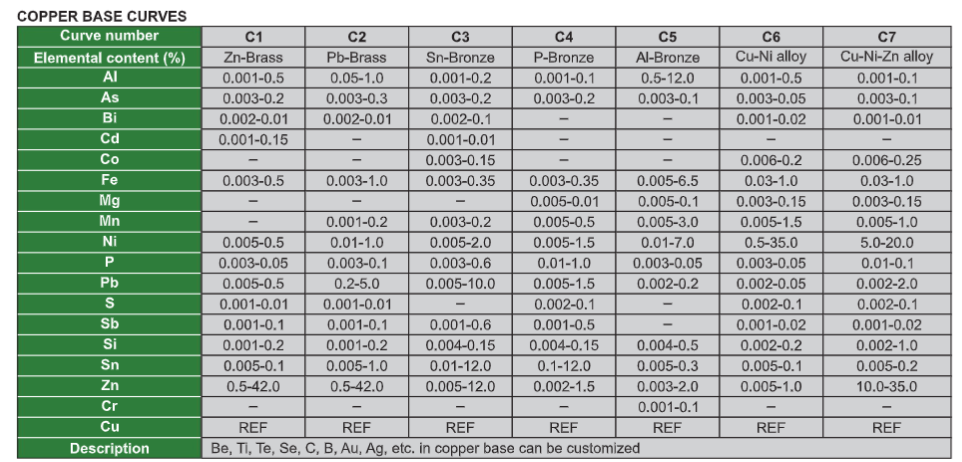

customized curve curves can be added or customized for special base materials (Mg Ti Pb Sn Mn etc)
excitation source  excitation frequency 20~1000Hz
excitation current 90A
excitation voltage 190V
discharge parameter inductance 120µH resistance 35Ω capacitance 5µF voltage 380V
spark stand dimension 125×95mm max load 50kg
lens one-piece lens isolation valve
excitation electrode tungsten electrode
Gas supply argon quality purity 99999% pressure ≥06MPa
flow rate tidal flushing mode excitation 8L/min standby 60ml/min
General analysis time <40s
Data processing after instrument excitation acquisition and countback to independently control the
integration exposure time of different CCDs
Work environment 20~25°C <70%RH
Power supply AC220V 50Hz 10 16A 25KW ground resistance <4Ω
Dimension (W×D×H) 470×872×435mm
Weight 80kg
