S-Type Tensile/Compression Sensors (Compact Type)- 8651

Save 25%

Size: 8651-5
Price:
Rs. 9,099 Rs. 12,105

Tax included Shipping calculated at checkout

Description

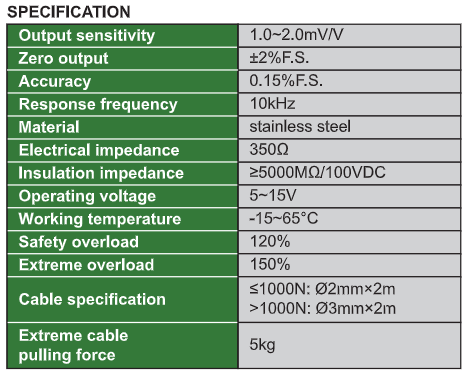

Specifications:-

  • Characteristic: bi-directional tension and compression, small size, high comprehensive precision, good long-term stability, nickel plating on the surface of stainless steel
  • Application fields: automotive press-fit, automatic assembly. 3C industry test, hand grip force for robot, keyboard feel test, etc.
Output sensitivity 1.0~2.0mV/V
Zero output ±2%F.S.
Accuracy 0.15%F.S.
Response frequency 10kHz
Material stainless steel
Electrical impedance 350Ω
Insulation impedance ≥5000MΩ/100VDC
Operating voltage 5~15V
Working temperature -15~65°C
Safety overload 120%
Extreme overload 150%
Cable specification ≤1000N: Ø2mm×2m
Extreme cable >1000N: Ø3mm×2m
Pulling Force 5kg
