GIN Radius and Angle Dresser - RDA/B/C

Save 7%

MODEL: GIN-RDA
Price:
Rs. 78,949 Rs. 84,999

Tax included Shipping calculated at checkout

Description

Gin' Radius and Angle Dresser is a precision grinding wheel dresser on any type of surface or tool & cutter grinding machine to dress the grinding wheel to any desired form - any combination of tangents and radius - either convex or concave as shown below. radius is set very precisely with the help of slip gauges

TITLE MODEL NO. MAX. CONVEX RADIUS  MAX. CONCAVE RADIUS MA. HORIZONTAL MOVEMENT  MAX. APLICABLE WHEEL DRESSING

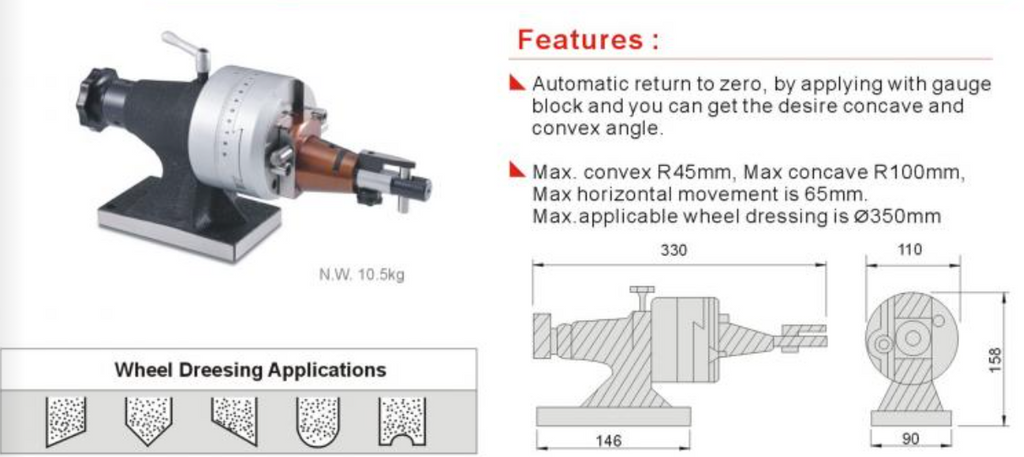

RADIUS AND ANGLE DRESSER  RDA 45MM 100MM 65MM 350MM

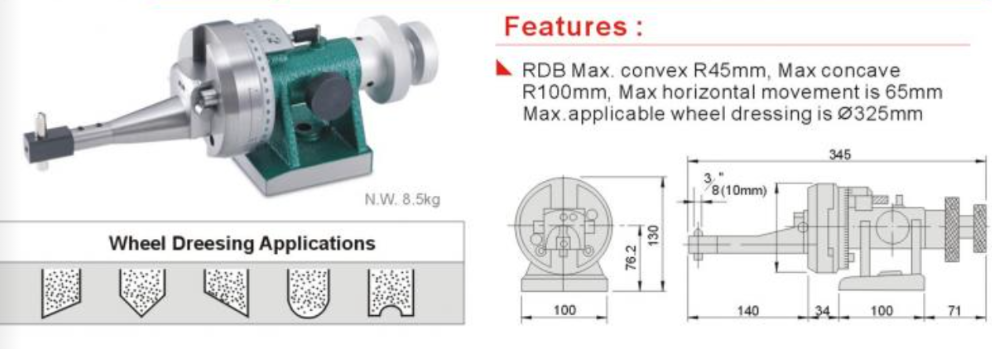

RDB 45MM 100MM 65MM 325MM

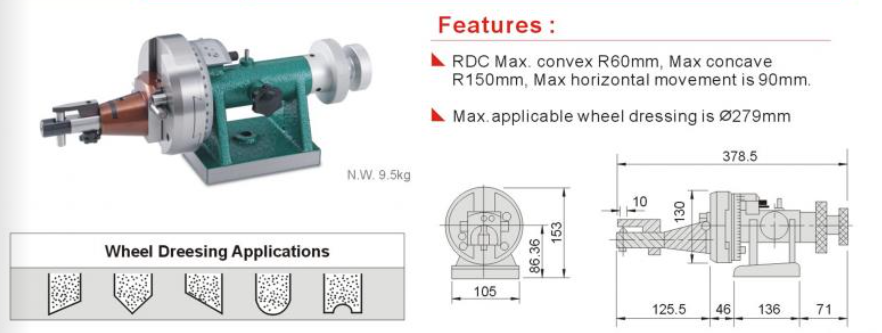

RDC 60MM 150MM 90M 279M
