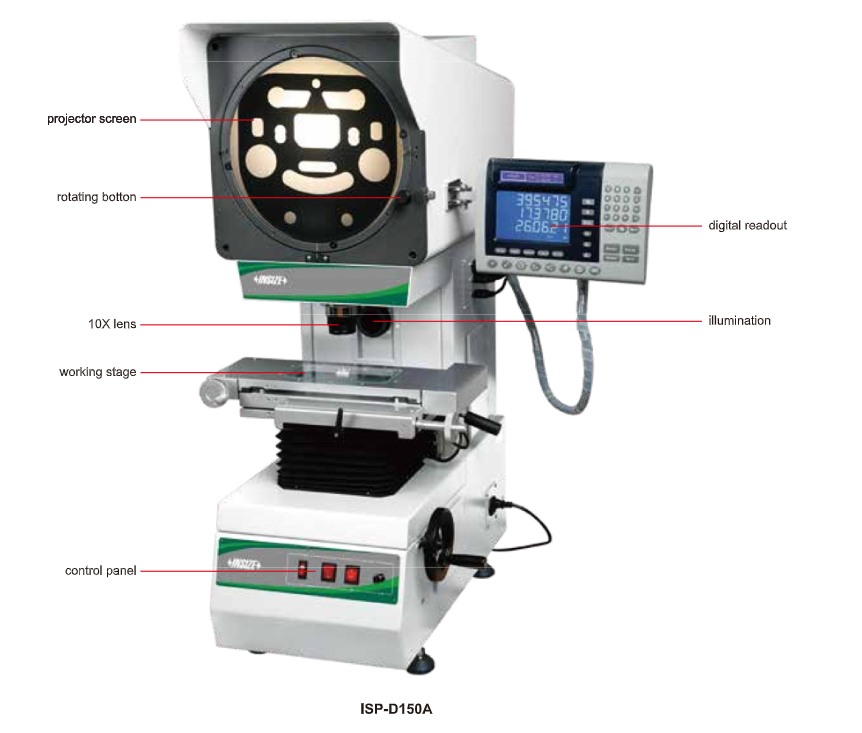

Profile Projectors (Basic Type) - ISP-D

Save 25%

Size: ISP-D150A
Price:
Rs. 420,429 Rs. 559,175

Tax included Shipping calculated at checkout

Description

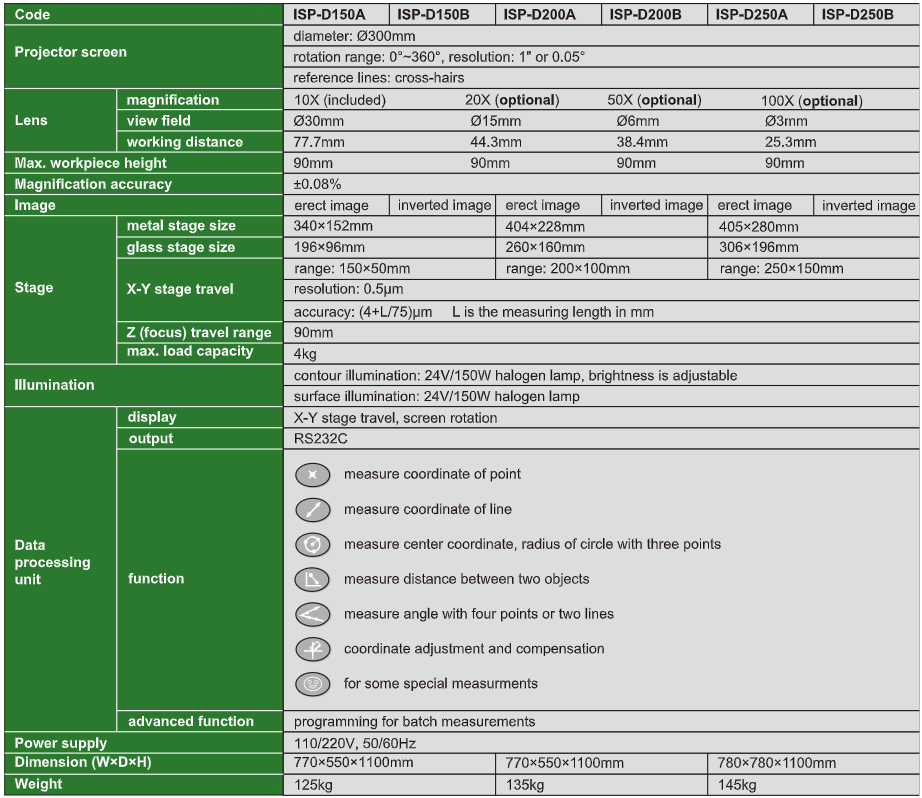

Specifications:-

Code ISP-D150A ISP-D150B ISP-D200A ISP-D200B ISP-D250A ISP-D250B
Projector screen diameter: Ø300mm
rotation range: 0°~360°, resolution: 1" or 0.05°
reference lines: cross-hairs

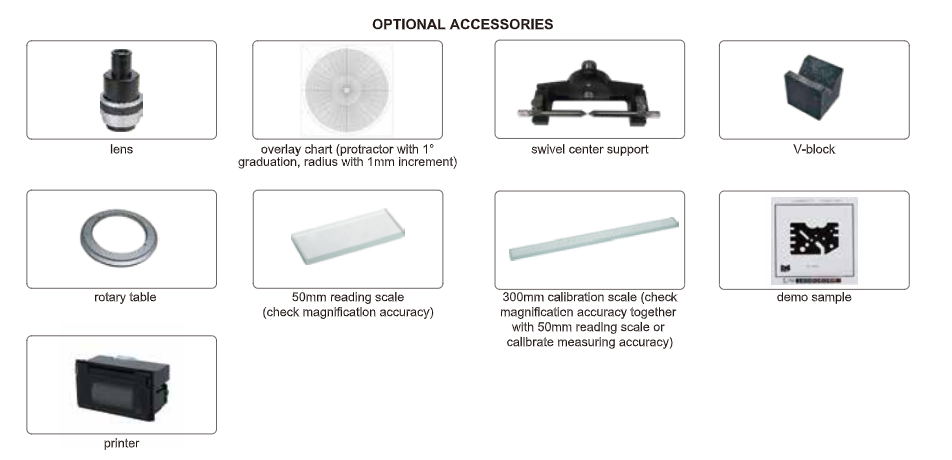

Lens magnification 10X (included) , 20X (OPTIONAL), 50X (OPTIONAL), 100X (OPTONAL)
view field Ø30mm , Ø15mm, Ø6mm, Ø3mm
working distance 77.7mm , 44.3mm,   38.4mm, 25.3mm
Max. workpiece height 90mm
Magnification accuracy ±0.08%
Image erect image inverted image erect image inverted image erect image inverted image
Stage metal stage size 340×152mm 404×228mm 405×280mm
glass stage size 196×96mm 260×160mm 306×196mm
range: 150×50mm range: 200×100mm range: 250×150mm
X-Y stage travel resolution: 0.5µm
accuracy: (4+L/75)µm L is the measuring length in mm
Z (focus) travel range 90mm
max. load capacity 4kg
Illumination contour illumination: 24V/150W halogen lamp, brightness is adjustable
surface illumination: 24V/150W halogen lamp
Data processing unit display X-Y stage travel, screen rotation
output RS232C
function measure coordinate of point
measure coordinate of line
measure center coordinate, radius of circle with three points
measure distance between two objects
measure angle with four points or two lines
✓ coordinate adjustment and compensation
for some special measurments
advanced function programming for batch measurements
Power supply 110/220V, 50/60Hz
Dimension (W×D×H) 770×550×1100mm 770×550×1100mm 780×780×1100mm
Weight 125kg 135kg 145kg
