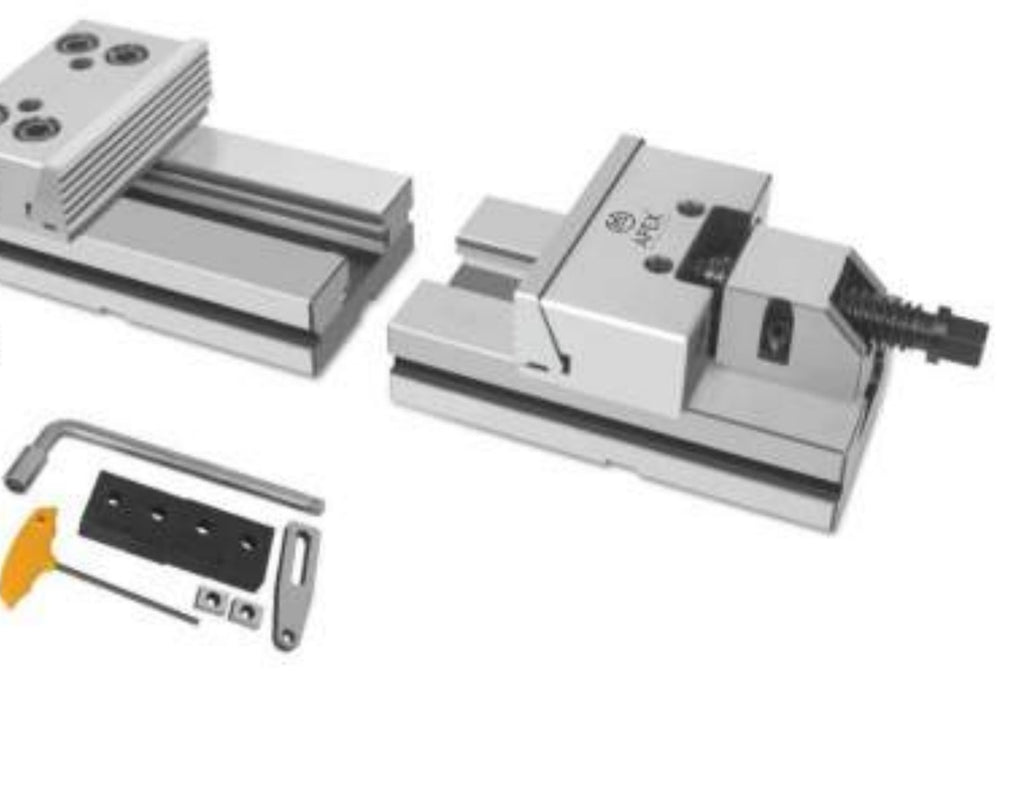

Precision Two Piece Modular Vice - Apex Code 795

Save 22%

Size: 150 mm
Price:
Rs. 58,075 Rs. 74,335

Tax included Shipping calculated at checkout

Description

Features :
  • Two Piece Modular Vice designed for precision milling, grinding and widely used with CNC & Standard Milling Machines.
  • Modular elements allow you perfect clamping even of big workpiece which need heaviest machining using the machine table as surface.
  • This vice is solution for a lot of applications and a perfect complement or alternative to single or double vices.
  • Both Jaw Plates are in pull-down angle. This ensures, during the clamping operation a down load run of the workpiece against the vice base and thus a precise and safely clamping.
  • All components of vice are interchangeable with perfect alignment to provide different work to hold solutions.
  • The space-saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vice.
  • Four extra tapped hole with ground back jaw rear face increase maximum opening capacity with the addition of jaws extensions.
  • EN - 353 steel, case hardened HRC 60 ± 2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear.
  • Same Bed High Maintained for gang milling operations.
  • Accuracy : 10 Microns

Standard Accessories :

  • 1 Work Stopper, 1 Pair of standard 16 mm positioning key nuts
  • 4 Clamps, T Allen key, 1 Box wrench
Size L W H O L1 H1 J J1 T Weight in Kgs. Clamping Pressure in Kgs.
150 Unlimited 125 101 Assorted Assorted 50 51 150 16 27 3000
