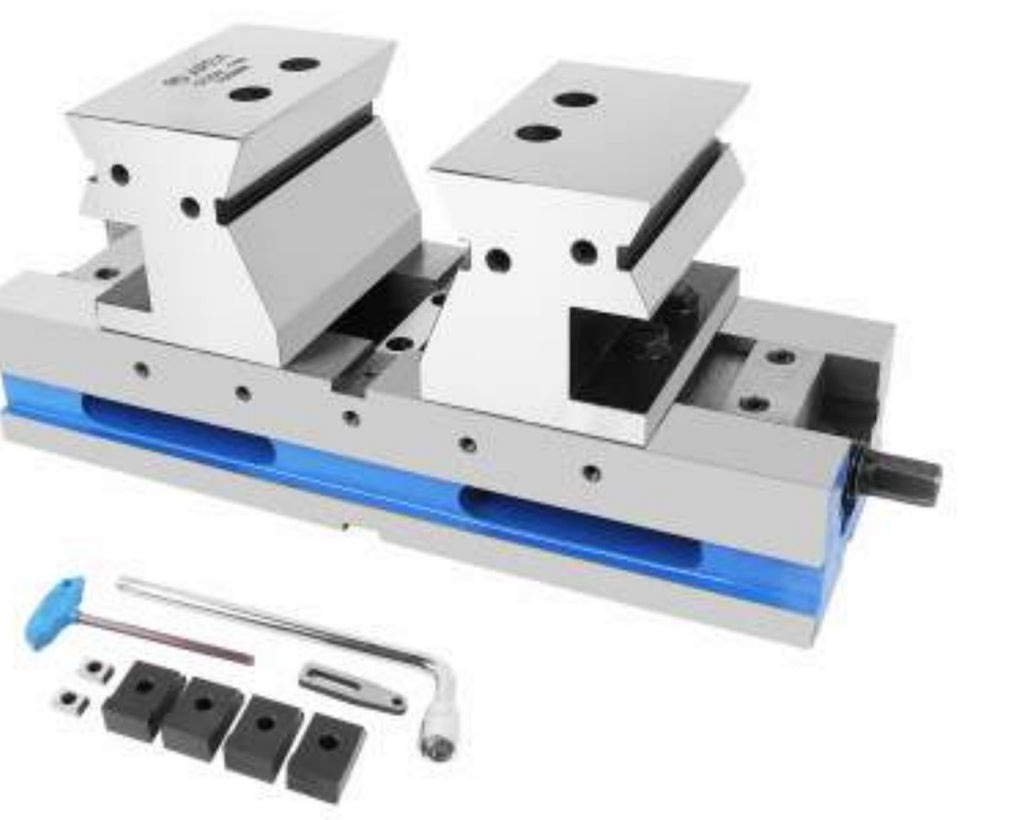

Precision Self Centering High Grip Shaft Vice - Apex Code 790

Save 22%

Size: 150 mm
Price:
Rs. 64,080 Rs. 82,020

Tax included Shipping calculated at checkout

Description

Features :
  • Self Centering Hi-Grip Shaft Vice designed for accurate centering for round jobs on Precision Milling Machine & widely used with CNC Machining Center.
  • High-Grade FCD 60 grade Ductile Cast Iron Body (Unbreakable), Grounded Top & Bottom. This CNC Vice Securely Holds Round Jobs and can also use in various shapes of components with the help of different available optional jaws.
  • Perfect Vice for Mass Production Environments. Bed Height Matched with Multiple Vice Orders.
  • High Alloyed Quality Resistance Steel, Case Hardened HRC 60 ± 2 is used in Clamping Jaws to give High Performance & No Wear.
  • Tenon & Tenon Slotes Provided for Effortless Truing of Vice on Machine Table.
  • High Clamping Force can achieve by Effortless handle movement which eliminates Hammering on vice handle.

Standard Accessories :

  • 4 Side Clamps | 1 Box Wrench | 2 Positioning Key Nuts, 1 Work Stopper

Optional Jaws : Soft Jaws, Serrated Jaws, Stepped Jaws, Prismatic Jaws

Model No. L W H L1 H1 H2 O O1 O2 T Weight in Kgs. Clamping Pressure in Kgs.
790 450 150 205 485 90 115 169.5 40-90 50-150 18 48 4000
