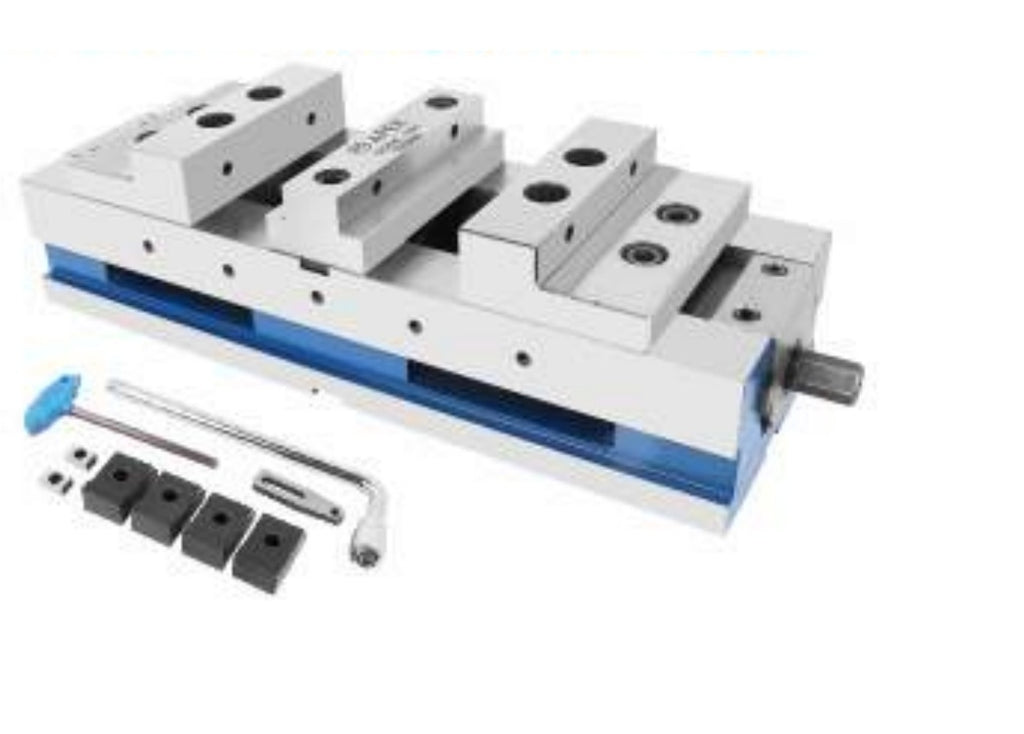

Precision Self Centering High Grip Machine Vice - Apex Code 791

Save 22%

Size: 150 mm
Price:
Rs. 62,385 Rs. 79,855

Tax included Shipping calculated at checkout

Description

Features :
  • Self Centering Hi-Grip Machine Vice designed for Precision Milling, Grinding & Widely used with CNC Machining Center.
  • The Jaws move towards the center. This always provide stable work piece centering settings.
  • High Grade FCD 60 Ductile Cast Iron Body (Unbreakable), Grounded Top & Bottom. This CNC Vice securely holds Two Work Pieces for Maximum Productivity.
  • Perfect Vice for Mass Production Environments.
  • The Vice also quickly converts into a Wide Opening single Station CNC Vice with a Massive 375 mm Capacity.
  • Bed Height matched with Multiple Vice Orders.
  • High Alloyed Quality Resistance Steel, Case Hardened HRC 60 ± 2 is used in Clamping Jaws to give High Performance & No Wear.
  • Accuracy in Parallelism & Squareness within 0.02/100 mm.
  • Interchangeable Jaws Plates. Tenon & Tenon Slots provided for Effortless Truing of Vice on Machine Table.
  • High Clamping Force can achieve by Effortless handle Movement which eliminates Hammering on Vice Handle.
  • Maximum Clamping Force : 3500 Kgs.

Standard Accessories :

  • 4 Side Clamps | 1 Box Wrench | 2 Positioning Key Nuts, 1 Work Stopper

Optional Jaws : Soft Jaws, Serrated Jaws, Stepped Jaws, Prismatic Jaws

Model No. L W H L1 H1 O O1 O2 T Weight in Kgs. Clamping Pressure in Kgs.
791 450 152 130 528 90 210 372 262 18 40 5000
