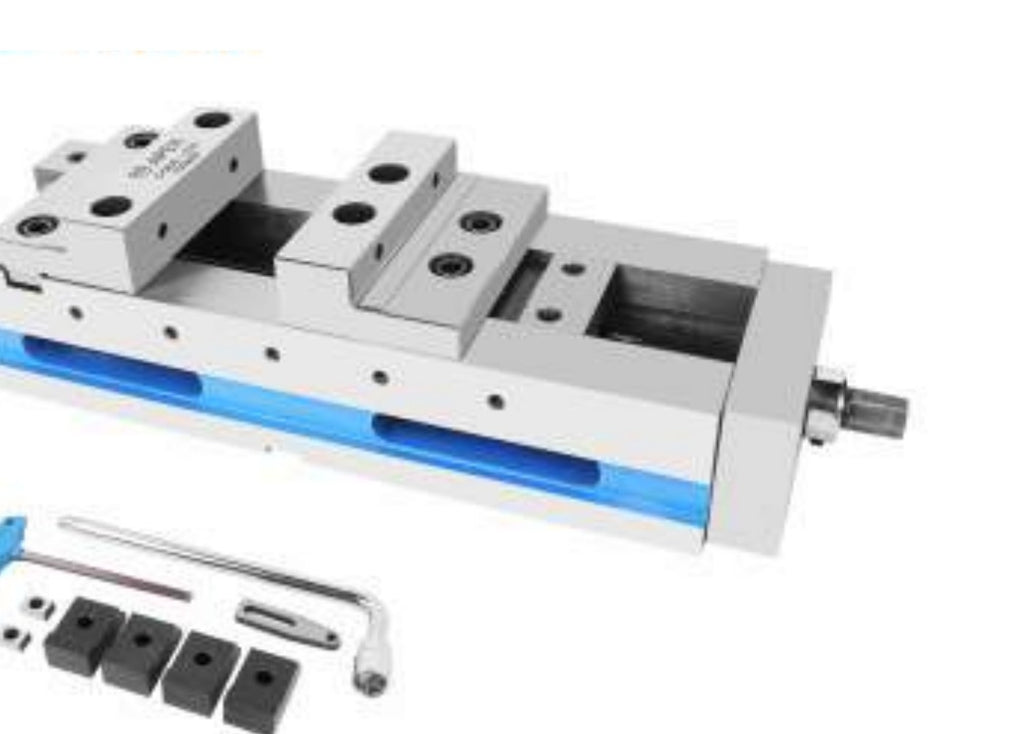

Precision High Grip Machine Vice - Apex Code 792

Save 22%

Size: 150 mm
Price:
Rs. 55,640 Rs. 71,220

Tax included Shipping calculated at checkout

Description

Features :
  • Hi-Grip Machine Vice designed for Precision Milling, Grinding & Widely used with CNC Machining Center.
  • High-Grade FCD 60 Ductile Cast Iron Body (Unbreakable), Grounded Top & Bottom.
  • Bed Height Matched with Multiple Vice Orders.
  • High Alloyed Quality Resistance Steel, Case Hardened HRC 60 ± 2 is used in Clamping Jaws to give High Performance & No Wear.
  • Accuracy in Parallelism & Squareness with in 0.002/100 mm.
  • Interchangeable Jaws Plates.
  • Tenon Tenon Slots Provided for Effortless Truing of Vice on Machine Table.
  • High Clamping Force can be achieved by Effortless Handle Movement which eliminates Hammering on vice Handle.
  • Maximum Clamping Force : 5000 Kg.

Standard Accessories :

  • 4 Side Clamps | 1 Box Wrench | 2 Positioning Key Nuts, 1 Work Stopper

Optional Jaws : Soft Jaws, Serrated Jaws, Stepped Jaws, Prismatic Jaws

Model No. L W H L1 H1 O O1 O2 T Weight in Kgs. Clamping Pressure in Kgs.
792 450 152 130 528 90 210 372 262 18 40 5000
