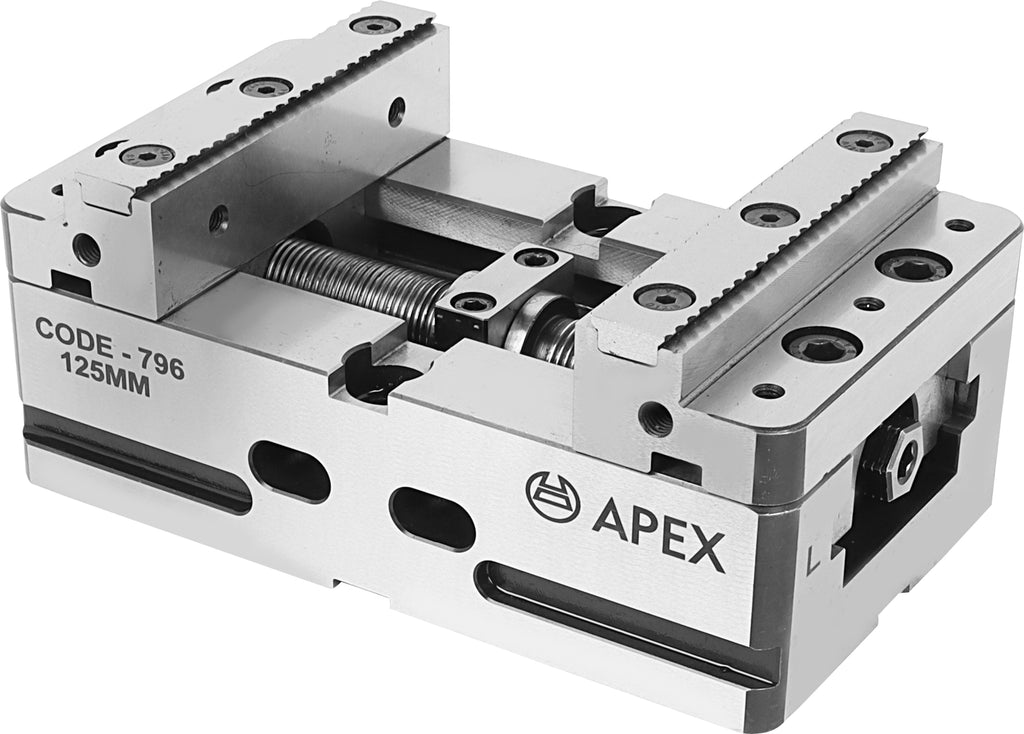

Precision 5-Axis Machine Vice - Apex Code 796

Save 22%

Size: 80 mm
Price:
Rs. 52,600 Rs. 67,330

Tax included Shipping calculated at checkout

Description

Features :
  • Self Centring 5-Axis Machine Vice designed for precision 4 and 5 Axis CNC Rotary Table usage, either in horizontal or vertical machining and widely used with Grinding & Precision Milling Machines.
  • Vice precision of its centre repetition position is ± 0.02 mm.
  • The space saving design and solid construction allow a maximum blocking ratio to total overall dimensions of the vice.
  • EN - 353 steel, case hardened HRC 60 ± 2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear.
  • All components of vice are interchangeable with perfect alignment to provide different work holding solutions.
  • Minimum clamping depth of 3 mm gives enormous material savings.
  • Maximum clamping pressure 5000 Kgs. approximate.
  • Highest holding power at minimum clamping force.
  • Vice allows application of short tools reduced vibration longer life to provide the best finish.
  • Ideal for use in 3 Axis machining centres also for mass production with multiple vices setup.
  • Same Bed High Maintained for gang milling operations.

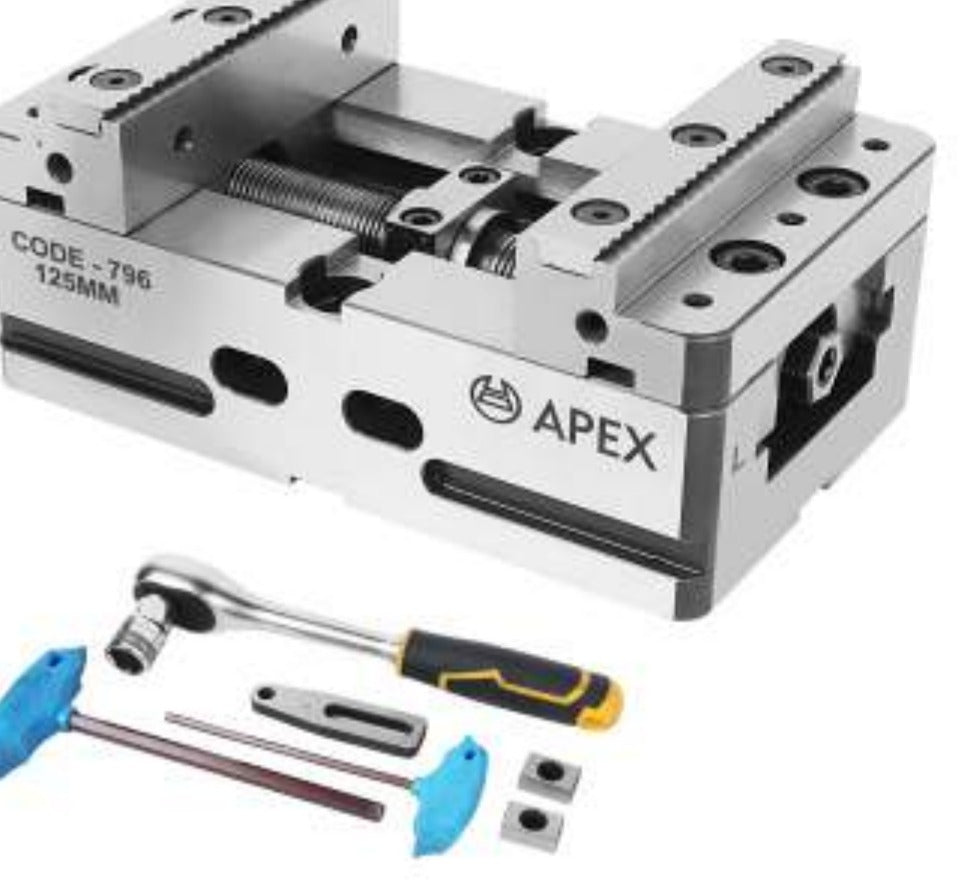

Standard Accessories :

  • 1 Work Stopper, 1 Pair of standard 16 mm positioning key nuts
  • 4 Clamps, T Allen key, 1 Box wrench
Size L L1 W H H1 J T P P1 P2 O O1 O2 R R1 Weight in Kgs. Clamping Pressure in Kgs.
80 150 158 80 73 45 28 12 60 52 52 70 75 2.5 110 115 4.2 3000
125 210 211.5 125 89.5 57 32.5 16 100 96 96 110 116 3 160 166 11 5000
