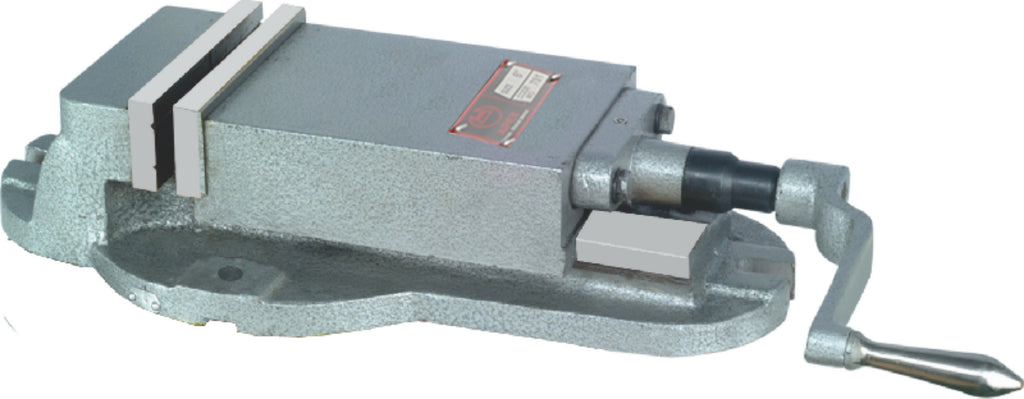

Preci Milling Machine Vice (Plain Model) Apex Code 748P

Save 22%

Jaw Size: 4 Inches / 100mm
Price:
Rs. 11,699 Rs. 14,975

Tax included Shipping calculated at checkout

Description

        Features :

  • Manufactured to consistent accuracy to give prolonged
  • reliable service.
  • Totally enclosed design prevents the ingress of foreign
  • matter and damage to the screw and nut.
  • Swivel base graduated fully 360°.
  • Spares readily available..
  • Tenon Slots in slide and swivel base.
  • Available as plain and swivel vice.



       SPECIFICATIONS
RANGE 4 Inches 6 Inches 8 Inches
Width of Jaws (In mm) 100 150 200
Opening of Jaws (In mm) 100 150 200
Depth of Jaws (In mm) 40 50 60
Length Overall (In mm) 317 480 615
Height Overall (In mm) 85 110 135
Width Overall (In mm) 155 245 300
Tenon slot size (In mm) 16 20 20
Weight In (Kgs) 12 34 65
