Portable Leeb Hardness Testers - HDT-CB320/HDT-WL320

Save 25%

Size: HDT-CB320
Price:
Rs. 49,139 Rs. 65,355

Tax included Shipping calculated at checkout

Description

Features:-

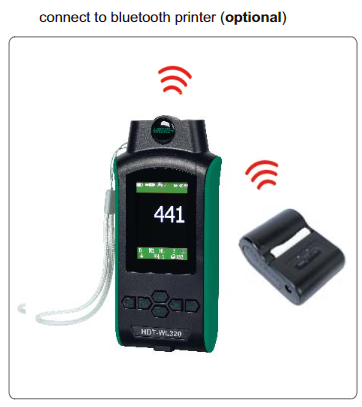

  • Can use wired probes or wireless probes
  • Dual-coil probe for high accuracy
  • Universal testing angle, no need to set impact direction
  • Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB), Shore (HS) and tensile strength (ab)
  • Dual value display, shows both Leeb and converted hardness
  • Large 2.4" LCD display with backlight
  • With a magnet on the back, the main unit can be attached on steel surfaces
  • Supplied with manufacturer inspection certificate traceable to DKD Germany.
  • According to ASTM A956 and DIN 50156

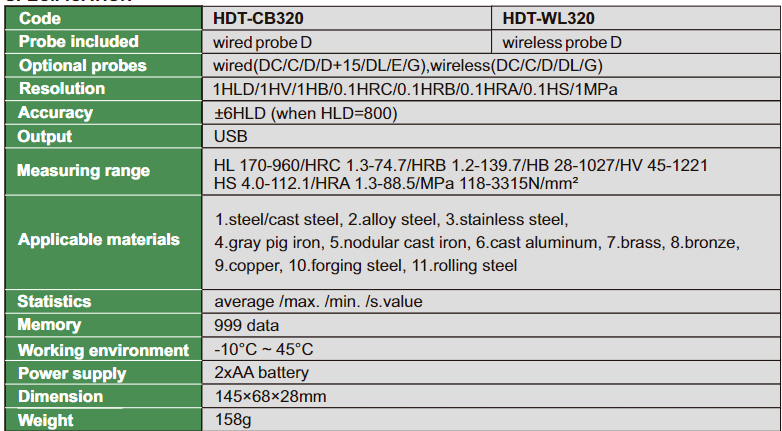

    Code HDT-CB320 HDT-WL320
    Probe included wired probe D Wireless probe D
    Optional probes wired(DC/C/D/D+15/DUE/G),wireless(DC/C/D/DL/G)
    Resolution 1HLD/1HV/1HB/O.1HRC/O.1HRB/O.1HRA/O.1HS/1MPa
    Accuracy Output ±6HLD (when HLD-800)

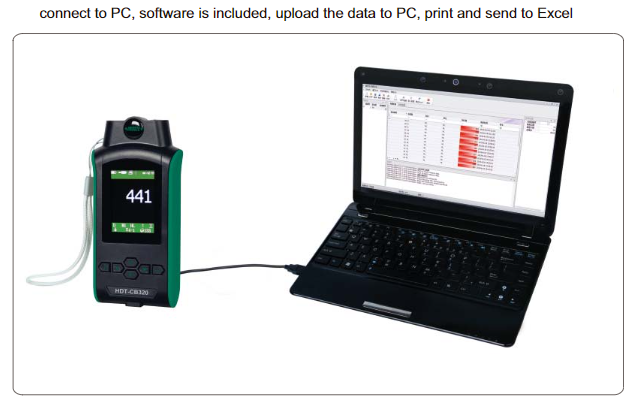

    Output USB
    Measuring range HL 170-960/HRC 1.3-74.7/HRB 1.2-139.7/HB 28-1027/HV 45-1221  HS 4.0-112.1/HRA 1.3-88.5/MPa 118-3315N/mm2
    Applicable materials 1 .steel/cast steel, 2.aIloy steel, 3.stainIess steel,4.gray pig iron, 5.nodular cast iron, 6.cast aluminum, 7.brass, 8.bronze,9.copper, 10.forging steel, 11 .rolling steel
    Statistics  average Imax. /min. /s.value
    Memory 999 data
    Working environment -10°C - 45°C
    Power supply Dimension 2xAA battery
    Dimension 145x68x28mm
    Weight 158g
