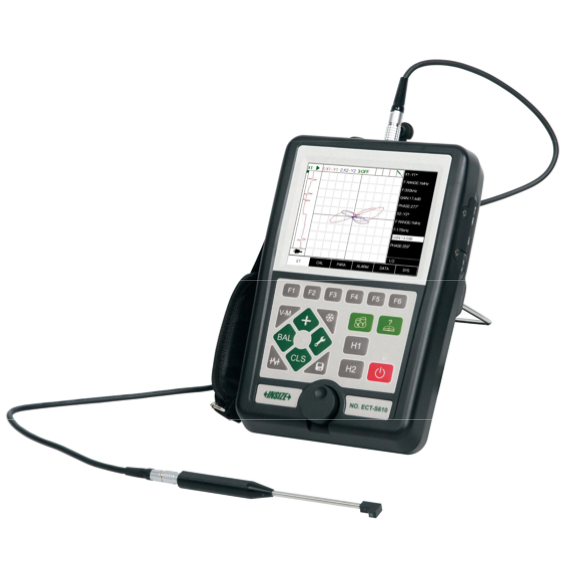

Portable Eddy Current Flaw Detector - ECT

Save 25%

Size: ECT-S610
Price:
Rs. 1,130,165 Rs. 1,503,120

Tax included Shipping calculated at checkout

Description

Features;-

  • Real-time impedance plane and time base sweep display modes available
  • Easy to operate menu interface, with universal knob operation is more convenient and fast
  • Analyzes the signal waveform of the entire detection, process, automatically measuring phase and amplitude.
  • With amplitude and phase alarms and settable boundaries
  • 5.7" industrial-grade TFT display, can work in outdoor and direct sunlight environment
  • 500 sets of data, 500 sets of parameters, or 40 minutes of video storage
  • Applicable to all kinds of metal materials and parts, such as weld cracks, copper pipe, seamless steel pipe, stainless steel pipe, folding, scars, pits, cracks, delamination and other defects, has a high sensitivity

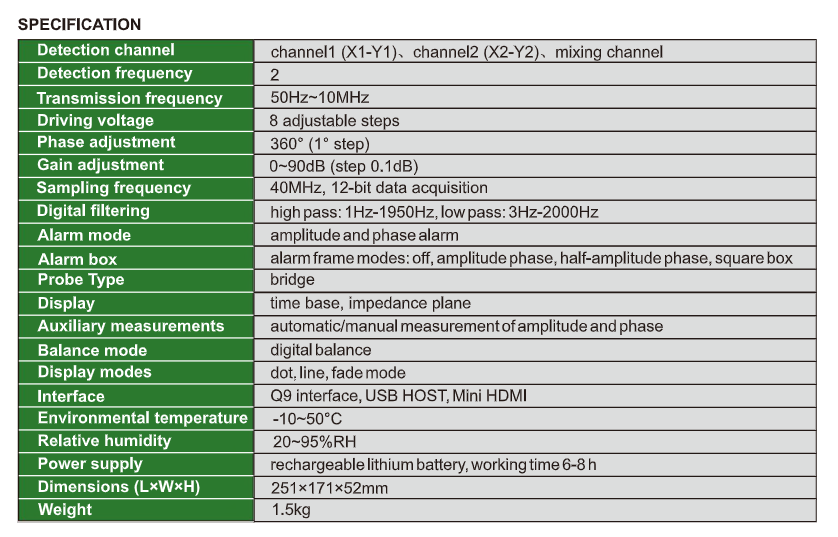

Detection channel channel1 (X1-Y1) channel2 (X2-Y2) mixing channel
Detection frequency 2
Transmission frequency 50Hz~10MHz
Driving voltage 8 adjustable steps
Phase adjustment 360° (1° step)
Gain adjustment 0~90dB (step 0.1dB)
Sampling frequency 40MHz 12-bit data acquisition
Digital filtering high pass 1Hz-1950Hz low pass 3Hz-2000Hz
Alarm mode amplitude and phase alarm
Alarm box alarm frame modes off amplitude phase half-amplitude phase square box
Probe Type bridge
Display time base impedance plane
Auxiliary measurements automatic/manual measurement of amplitude and phase
Balance mode digital balance
Display modes dot line fade mode
Interface Q9 interface USB HOST Mini HDMI
Environmental temperature -10~50°C
Relative humidity 20~95%RH
Power supply rechargeable lithium battery working time 6-8 h
Dimensions (L×W×H) 251×171×52mm
Weight 1.5kg
