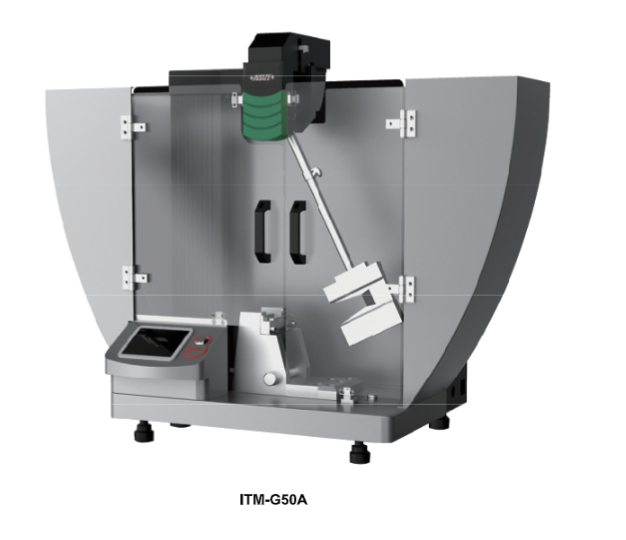

Plastic Pendulum Impact Testing Machines (Advance Type) - ITM-G

Save 25%

Model no.: ITM-G50A
Price:
Rs. 1,593,885 Rs. 2,119,865

Tax included Shipping calculated at checkout

Description

Features:-

  • According to GB/T 1043, GB/T 1843, GB/T 13525, ISO 179, ISO 180, ASTM D6110, ASTM D256
  • For impact resistance testing of non-metallic materials including plastics, nylon,
  • rubber, wood, fiberglass, composite plastic pipes and electrical insulating materials
  • Easy adjustment and replacement of supports, with strong applicability
  • Customizable microcomputer and instrumented models
  • Supplied with manufacturer inspection certificate
  • MATERIAL AGAINST ORDER

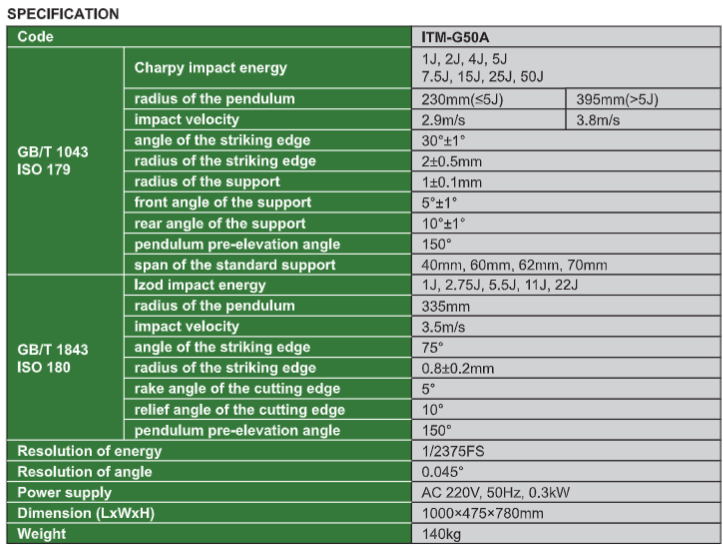

Code ITM-G50A
Charpy impact energy 1J, 2J, 4J, 5J7.5J, 15J, 25J, 50J
radius of the pendulum 230mm(≤5J)
impact velocity 2.9m/s
angle of the striking edge 30°±1°
GB/T 1043ISO 179 radius of the striking edge 2±0.5mm
radius of the support 1±0.1mm
front angle of the support 5°±1°
rear angle of the support 10°±1°
pendulum pre-elevation angle 150°
span of the standard support 40mm, 60mm, 62mm, 70mm
Izod impact energy 1J, 2.75J, 5.5J, 11J, 22J
radius of the pendulum 335mm
impact velocity 3.5m/s
GB/T 1843ISO 180 angle of the striking edge 75°
radius of the striking edge 0.8±0.2mm
rake angle of the cutting edge
relief angle of the cutting edge 10°
pendulum pre-elevation angle 150°
Resolution of energy 1/2375FS
Resolution of angle 0.045°
Power supply AC 220V, 50Hz, 0.3kW
Dimension (LxWxH) 1000×475×780mm
Weight 140kg

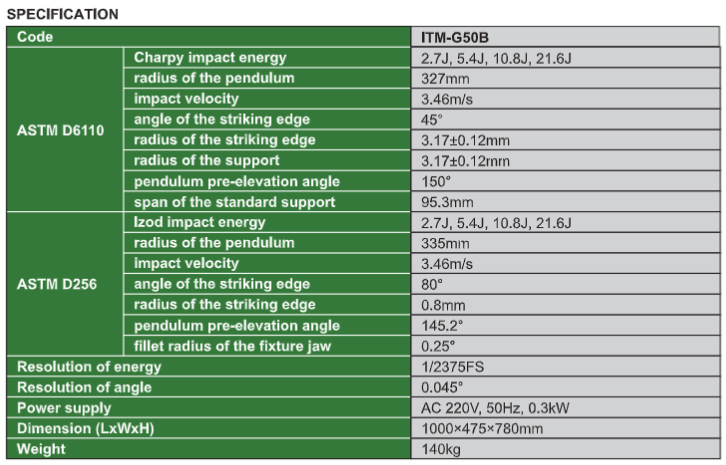

Code ITM-G50B
Charpy impact energy 2.7J, 5.4J, 10.8J, 21.6J
radius of the pendulum 327mm
impact velocity 3.46m/s
ASTM D6110
angle of the striking edge 45°
radius of the striking edge 3.17±0.12mm
radius of the support 3.17±0.12rnrn
pendulum pre-elevation angle 150°
span of the standard support 95.3mm
Izod impact energy 2.7J, 5.4J, 10.8J, 21.6J
radius of the pendulum 335min
impact velocity 3.46m/s
ASTM D256
angle of the striking edge 80°
radius of the striking edge 0.8mm
pendulum pre-elevation angle 145.2°
fillet radius of the fixture jaw 0.25°
Resolution of energy 1/2375FS
Resolution of angle 0.045°
Power supply AC 220V, 50Hz, 0.3kW
Dimension (LxWxH) 1000×475×780mm
Weight 140kg
