Pitch Gauge - 4820

Save 25%

Quantity of Leaves: 4820-452
Price:
Rs. 869 Rs. 1,155

Tax included Shipping calculated at checkout

Description

Features:-

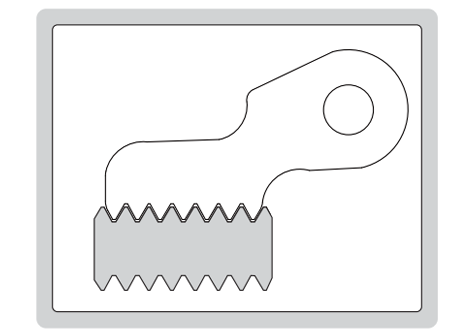

  • Check the pitch of screw thread
  • Made of medium carbon steel.

Metric 60° and whitworth 55° screw

Specification:-

CODE RANGE PITCH OF LEAVES INCLUDED QUANTITY OF LEAVES
4820-452
0.25-6mm 0.25,0.3,0.35,0.4,0.45,0.5,0.6,0.7,0.75,0.8,0.9,1,1.25,1.5,1.75,2,2.5,3,3.5,4,4.5,5.5,6mm
52
4-62TPI 4,4-1/2,5,6,7,8,9,10,11,12,13,14,16,18,20,22,24,25,26,28,30,32,36,40,48,60,62TPI

Metric 60° and whitworth 60° screw

Specification:-

CODE RANGE PITCH OF LEAVES INCLUDED QUANTITY OF LEAVES
4820-552
0.4-7mm 0.4,0.05,0.6,0.7,0.75,0.8,0.9,1,1.25,1.5,1.75,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7mm
52
4-42TPI 4,4-1/2,5,5-1/2,6,7,8,9,10,11,11-1/2,12,13,14,15,16,18,20,22,24,26,27,28,30,32,34,36,38,40,42TPI
