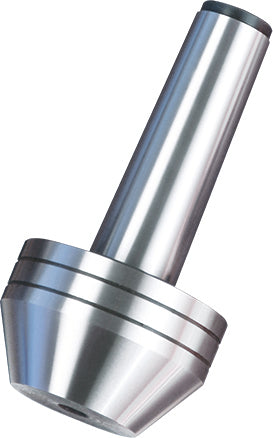

Pipe Center MT-4 : Blunt 60° Angle Revolving Cone (For Conventional Slow Speed Non CNC Application)

Save 40%

Shank Taper: MT-4 x 25-50
Price:
Rs. 2,204 Rs. 3,681

Tax included Shipping calculated at checkout

Description







         SPECIFICATIONS

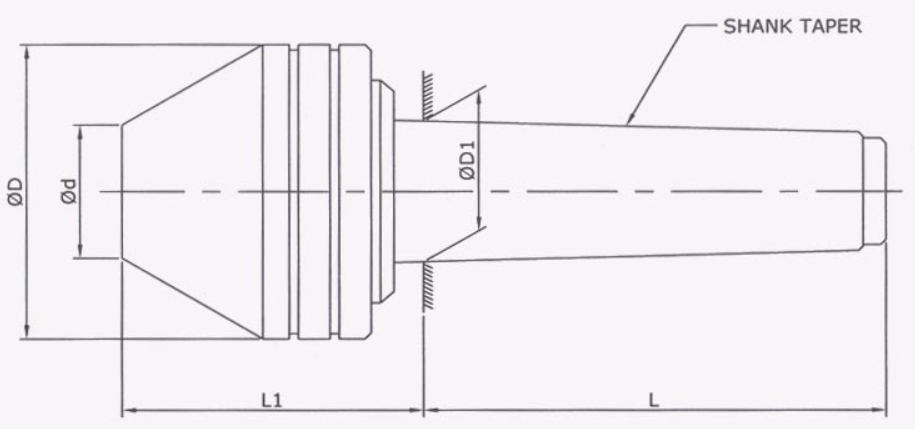

Part No. SHANK TAPER ∅d mm ∅D mm ∅D1 mm L mm L1mm CONC. ERROE MM MAX. RPM
PC MT4 25-50 MT-4 25 55 31.267 102.5 67.5 0.015 750
PC MT4 30-65 MT-4 30 65 31.267 102.5 68.5 0.015 750
PC MT4 40-75 MT-4 40 77 31.267 102.5 70.5 0.015 600
PC MT4 50-90 MT-4 50 90 31.267 102.5 71.5 0.015 600
PC MT4 65-100 MT-4 65 102 31.267 102.5 71.5 0.015 500
PC MT4 35-125 MT-4 35 127 31.267 102.5 128 0.015 350
PC MT4 75-125 MT-4 75 127 31.267 102.5 93 0.015 350
PC MT4 75-150 MT-4 75 153 31.267 102.5 98 0.015 300
PC MT4 100-175 MT-4 100 178 31.267 102.5 128 0.015 250
PC MT4 100-200 MT-4 100 204 31.267 102.5 128 0.015 250
