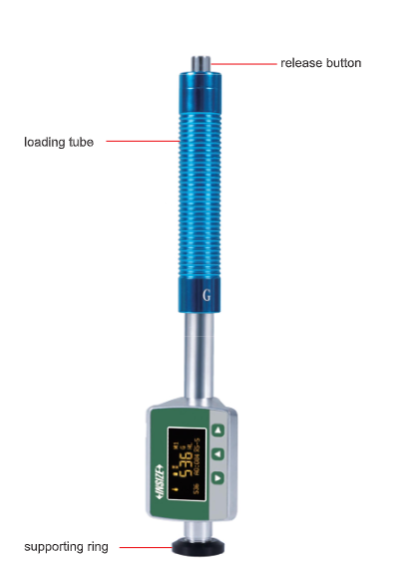

Pen-Type Leeb Hardness Tester (Type G) - HDT-LG

Save 25%

Model no.: HDT-LG210
Price:
Rs. 206,659 Rs. 275,549

Tax included Shipping calculated at checkout

Description

Features:-

  • Impact device G is included

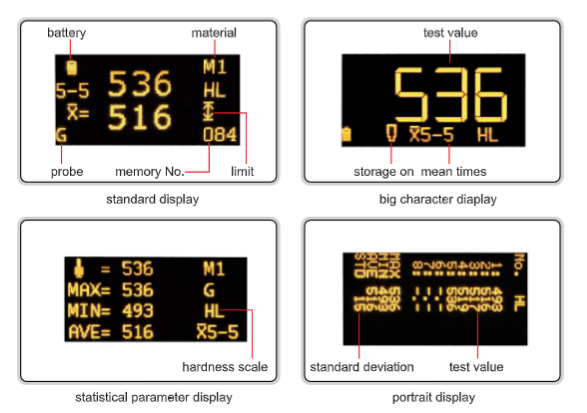

  • High contrast OLED display
  • No need to set the testing direction
  • Based on Leeb(HLG), converted to Rockwell (HRB), Brinell (HB). Dual value display, shows both Leeb and other conversion values

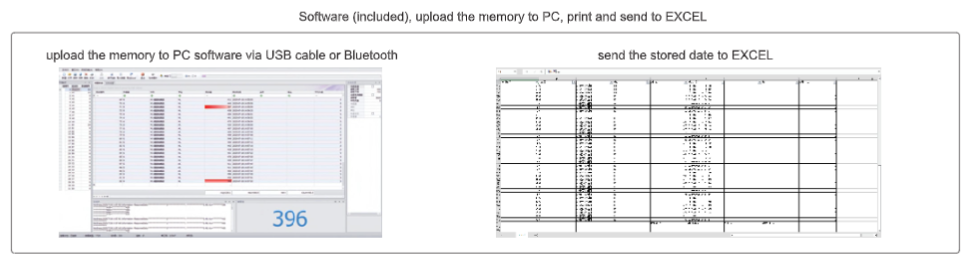

  • Built-in wireless bluetooth, connected to PC software via USB or Bluetooth
  • Connected with printer via Bluetooth
  • Stores 31 files (100 test data points per files), supports Excel export
  • According to DIN 50156, EN ISO 16859, ASTM A956
  • Supplied with manufacturer inspection certificate

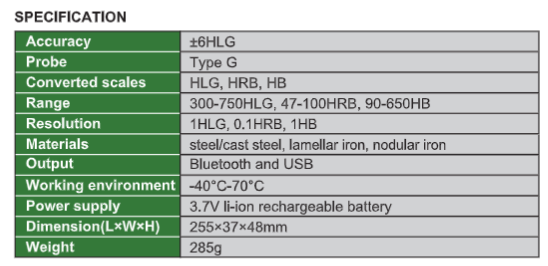

Specification:-

Accuracy ±6HLG
Probe Type G
Converted scales HLG, HRB, HB
Range 300-750HLG, 47-100HRB, 90-650HB
Resolution 1HLG, 0.1HRB, 1HB
Materials steel/cast steel, lamellar iron, nodular iron
Output Bluetooth and USB
Working environment -40°C-70°C
Power supply 3.7V li-ion rechargeable battery
Dimension (L×W×H) 255×37×48mm
Weight 285g

Standard Delivery:-

  • Main unit
  • Hardness test block (HLG)
  • Small support ring
  • Cleaning brush
  • Software and USB cable
  • AC/DC adapter

Optional Accessory:-

  • Printer (code: ISH-LP200-PRINTER)
  • Hardness test block 460-540HLG (code: HDT-B-HLG1)
  • Hardness test block 550-630HLG (code: HDT-B-HLG2)
