Parallel Sets - 6511

Save 25%

Model no.: 6511-20 (100mm)
Price:
Rs. 10,289 Rs. 13,719

Tax included Shipping calculated at checkout

Description

Features:-

  • Parallelism between top and bottom: 5µm
  • Height difference of a matched pair: 5µm
  • Made of alloy tool steel
  • Hardened to HRC55-60

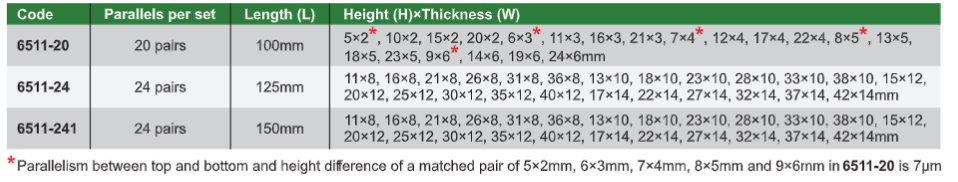

Code Parallels per set Length (L) Height (H)×Thickness (W)
6511-20 20 pairs 100mm 5×2*, 10x2, 15x2, 20×2, 6×3*, 11×3, 16×3, 21×3, 7×4*, 12×4, 17×4, 22×4, 8×5*, 13×5, 18×5, 23×5, 9×6*, 14×6, 19×6, 24×6mm
6511-24 24 pairs 125mm 11×8, 16×8, 21×8, 26×8, 31×8, 36×8, 13×10, 18×10, 23x10, 28×10, 33×10, 38×10, 15×12, 20×12, 25x12, 30×12, 35×12, 40×12, 17×14, 22x14, 27×14, 32×14, 37×14, 42×14mm

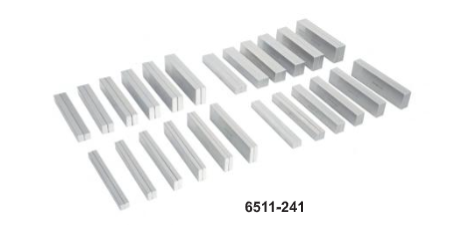

6511-241 24 pairs 150mm 11×8, 16×8, 21×8, 26×8, 31×8, 36×8, 13×10, 18×10, 23×10, 28×10, 33×10, 38×10, 15×12, 20×12, 25×12, 30×12, 35×12, 40×12, 17×14, 22×14, 27×14, 32×14, 37×14, 42×14mm
